EMC Shielding Flexible Metal Conduit (Abrasion & Dust Proof), Square-lock Gal, PVC Jacket, Stainless Steel Braiding

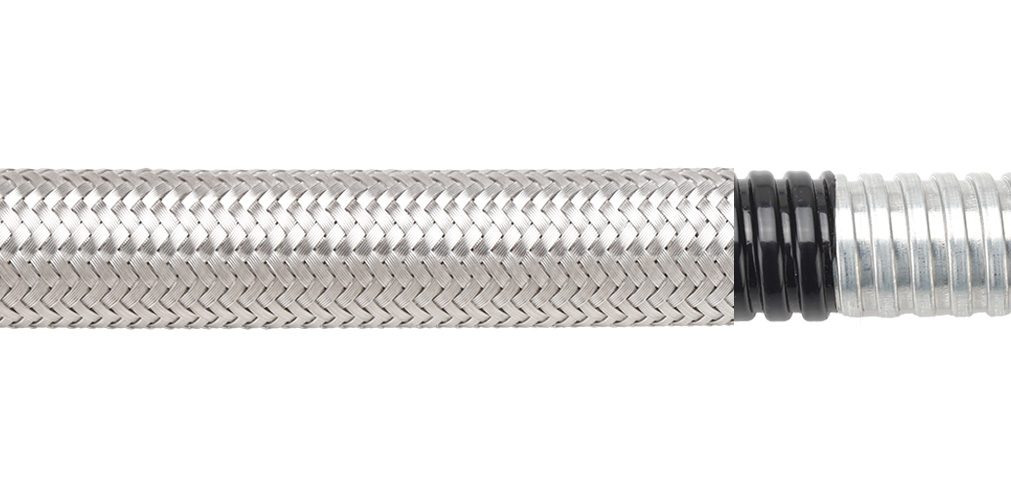

EMC Shielding Braided Flexible Metal Conduit (Abrasion & Dust Proof) - PAG13PVCSB series is manufactured with galvanized steel strip by continuous wound in square-lock profile coated by PVC jacket and then shielded with stainless steel braiding. This is an upgrade design basing on the EMC shielding series. The conduit sizes meet with the system normally used in Asia market. This series of flexible conduit is in excellent mechanical characteristics and dust seal. The braiding brings further abrasion resistance. Basic level of EMC shielding is available when installed in the environment with possible electromagnetic interference. The PVC jacket is also fire retardant and belongs to low fire hazard product. The material is RoHS approved as well to answer the demand of environmental protection product.
Feature
-
Material:
Galvanized Steel + PVC Jacket + Stainless Steel Braiding -
Profile：
Square-lock -
Temperature Range :
-20℃~+80℃, -40℃~+105℃ -
IP Rating :
IP 40 (Fit with ABZ60 & ABZ63 connector series) -
Flexibility :
Middle (≤2") -
EMC Shielding :
Standard (50dB/100MHz) -
Tensile Resistance :
1000N -
RoHS Compliance :
Yes
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Braiding (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PAG13PVCSB-10 | 8.0 | 11.6 | 35 | 25 | 320*320*120 | - |
| 12 | 5/16 | PAG13PVCSB-12 | 10.3 | 15.0 | 65 | 25 | 320*320*210 |  |
| 16 | 3/8 | PAG13PVCSB-16 | 12.6 | 17.6 | 75 | 25 | 400*400*160 | |
| 20 | 1/2 | PAG13PVCSB-20 | 16.1 | 21.9 | 75 | 25 | 450*450*210 | |
| 25 | 3/4 | PAG13PVCSB-25 | 21.1 | 26.9 | 75 | 25 | 530*530*160 | |
| 32 | 1 | PAG13PVCSB-32 | 26.8 | 34.3 | 105 | 10 | 530*530*320 | |
| 40 | 1-1/4 | PAG13PVCSB-40 | 35.4 | 43.8 | 125 | 10 | 550*550*500 | |
| 50 | 1-1/2 | PAG13PVCSB-50 | 40.3 | 48.5 | 175 | 10 | 550*550*550 | |
| 63 | 2 | PAG13PVCSB-63 | 51.6 | 60.6 | 205 | 10 | 550*550*600 | |
