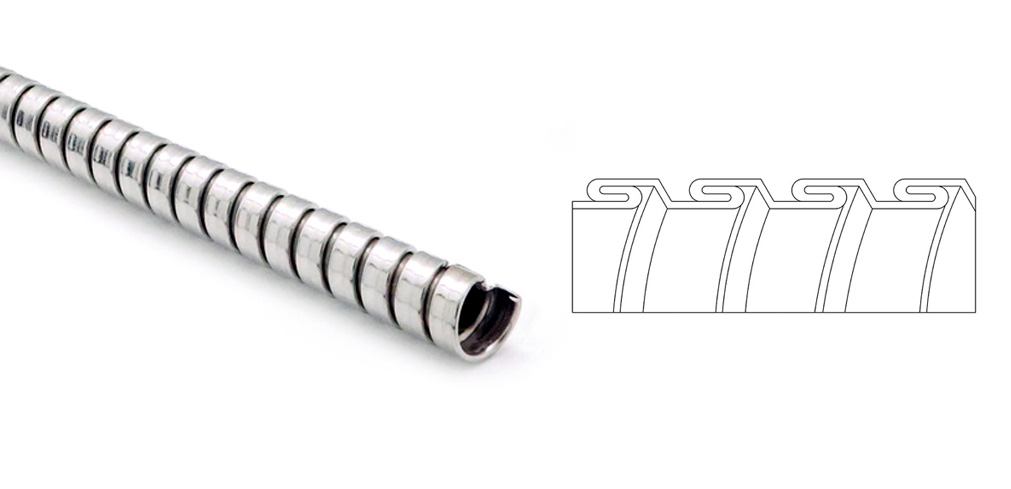

Stainless Steel Interlocked (Retractable Type)
Flexible Electrical Conduit, WP-S2 series is manufactured with stainless steel strip by continuous wound in interlock profile. The size range of this series of flexible tube is ID 4.0~16.1mm. It is featured with excellent flexibility and higher tensile resistance. Its miniaturized diameter makes the tube be light and also pressure resistance. That offers benefit to protect wires on constant moving part and in complex or narrow spaces. The bare electrical flexible conduit can be directly used in a controlled environment. For those locations with splash or higher humidity, electrical flexible conduit with plastic jacket is recommended. That offers not only waterproof but also fire retardant. As for the demand of high abrasion resistance or preventing the interference of microwave or static electricity in the environment (EMC shielding), electrical flexible conduit with metal mesh braiding is the proper one to choose.
Specially applicable for protection of signal wire on machine tools, automation system or equipment, robot, access control, security system, etc.
Feature
-
Material:
Stainless Steel Square Lock (Stretched Type) -
Temperature Range：
-40℃~+350℃ -
IP Rating
IP 40 -
Flexibility :
High -
RoHS Compliance :
Yes -
Standard
Follow IEC standard, 2~3 joints are allowed in a length of 100M.
Parameter
| Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Tensile Resistance (kg) | Scaling Rate (%) | Package/Roll (m) |
|---|---|---|---|---|---|---|
| P040060S2 | 4.0±0.2 | 6.0±0.2 | ≤40 | ≥100 | ＜10% | 200 |
| P046066S2 | 4.6±0.2 | 6.6±0.2 | ≤45 | ≥100 | ＜10% | 200 |
| P050070S2 | 5.0±0.2 | 7.0±0.2 | ≤45 | ≥100 | ＜10% | 200 |
| P054078S2 | 5.4±0.2 | 7.8±0.2 | ≤47 | ≥120 | ＜10% | 150 |
| P059084S2 | 5.9±0.2 | 8.4±0.2 | ≤47 | ≥120 | ＜10% | 150 |
| P062082S2 | 6.2±0.2 | 8.2±0.2 | ≤47 | ≥100 | ＜10% | 150 |
| P066090S2 | 6.6±0.2 | 9.0±0.2 | ≤50 | ≥120 | ＜10% | 150 |
| P070095S2 | 7.0±0.2 | 9.5±0.2 | ≤60 | ≥120 | ＜10% | 150 |
| P080105S2 | 8.0±0.2 | 10.5±0.2 | ≤65 | ≥120 | ＜10% | 100 |
| P095125S2 | 9.5±0.2 | 12.5±0.2 | ≤65 | ≥140 | ＜10% | 100 |
| P125157S2 | 12.5±0.3 | 15.7±0.3 | ≤85 | ≥140 | ＜10% | 100 |
| P145170S2 | 14.5±0.3 | 17.0±0.3 | ≤90 | ≥140 | ＜10% | 50 |
| P150180S2 | 15.0±0.3 | 18.0±0.3 | ≤100 | ≥180 | ＜10% | 50 |
| P161195S2 | 16.1±0.3 | 19.5±0.3 | ≤110 | ≥200 | ＜10% | 50 |
