Stainless Steel Interlocked + Tinned Copper Braiding

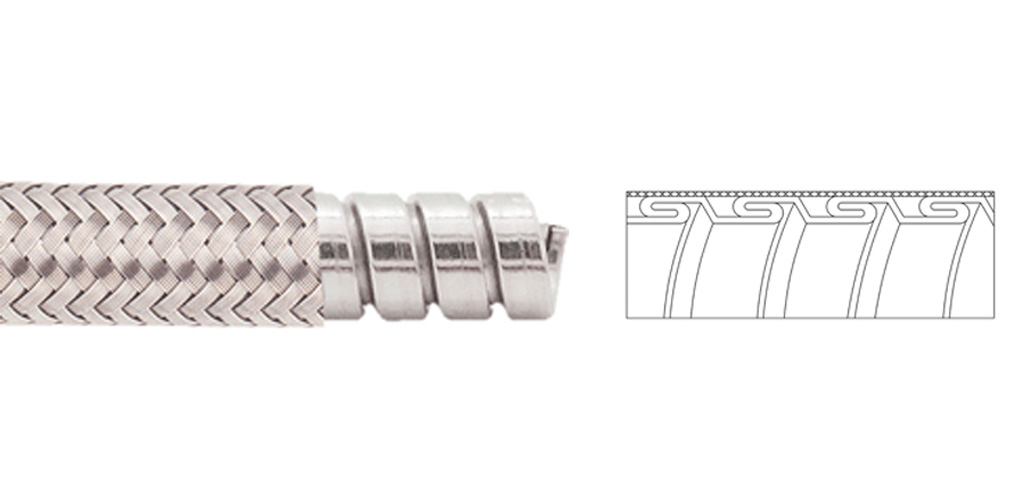

Flexible Electrical Conduit, WP-S2TB series is manufactured with stainless steel strip by continuous wound in interlock profile. The size range of this series of flexible tube is ID 4.0~16.1mm. It is featured with excellent flexibility and higher tensile resistance. Its miniaturized diameter makes the tube be light and also pressure resistance. That offers benefit to protect wires on constant moving part and in complex or narrow spaces. As for the demand of high abrasion resistance or preventing the interference of microwave or static electricity in the environment (EMC shielding), electrical flexible conduit with metal mesh braiding is the proper one to choose.
Specially applicable for protection of signal wire on machine tools, automation system or equipment, robot, access control and security system and etc..
Feature
-
Material:
Stainless Steel Interlocked + Tinned Copper Braiding -
Temperature Range：
-40℃~+350℃ -
IP Rating
IP 40 -
Flexibility :
Medium -
EMC Shielding：
High -
RoHS Compliance :
Yes -
Standard :
Follow IEC standard, 2~3 joints are allowed in a length of 100M.
Parameter
| Part Number | ID (mm) | OD w/Braiding (mm) | Bending Radius (mm) | Tensile Resistance (kg) | Package/Roll (m) |
|---|---|---|---|---|---|
| P040070S2TB | 4.0±0.2 | 7.0±0.25 | ≤45 | ≥100 | 200 |
| P046076S2TB | 4.6±0.2 | 7.6±0.25 | ≤50 | ≥100 | 200 |
| P050080S2TB | 5.0±0.2 | 8.0±0.25 | ≤50 | ≥100 | 200 |
| P054088S2TB | 5.4±0.2 | 8.8±0.25 | ≤52 | ≥120 | 100 |
| P059094S2TB | 5.9±0.2 | 9.4±0.25 | ≤57 | ≥120 | 100 |
| P062092S2TB | 6.2±0.2 | 9.2±0.25 | ≤57 | ≥100 | 100 |
| P066100S2TB | 6.6±0.2 | 10.0±0.25 | ≤55 | ≥120 | 100 |
| P070105S2TB | 7.0±0.2 | 10.5±0.25 | ≤65 | ≥120 | 100 |
| P080115S2TB | 8.0±0.2 | 11.5±0.25 | ≤75 | ≥120 | 100 |
| P095135S2TB | 9.5±0.2 | 13.5±0.25 | ≤75 | ≥140 | 100 |
| P125160S2TB | 12.5±0.3 | 16.0±0.35 | ≤95 | ≥140 | 50 |
| P145183S2TB | 14.5±0.3 | 18.3±0.35 | ≤100 | ≥140 | 50 |
| P150193S2TB | 15.0±0.3 | 19.3±0.35 | ≤110 | ≥180 | 50 |
| P161208S2TB | 16.1±0.3 | 20.8±0.35 | ≤120 | ≥200 | 50 |
