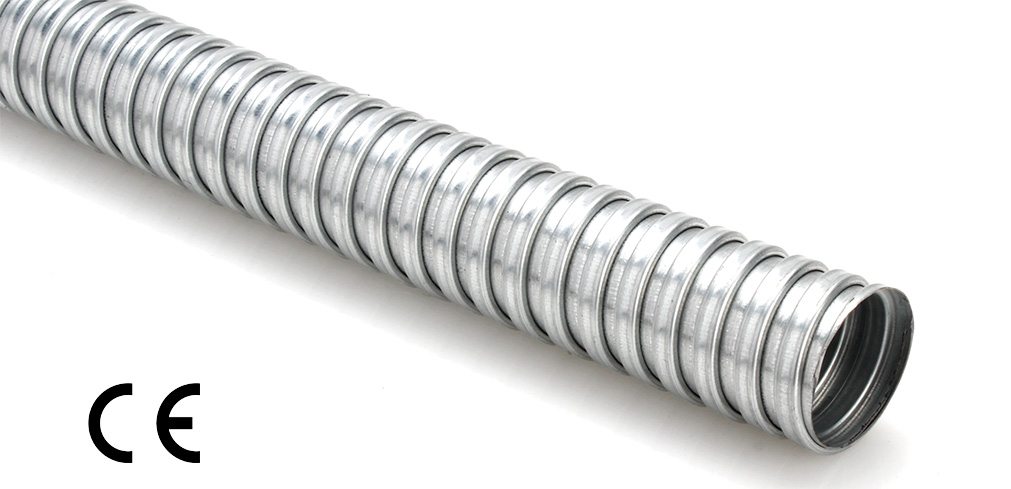

Flexible Metal Conduit, Square-lock Galvanized Steel
Flexible Metal Conduit, PAG13X series is manufactured with galvanized steel strip by continuous wound in square-lock profile. This series of flexible metal conduit is developed with 3 classified levels, Light, Medium & Heavy, for different applications. The conduit sizes meet with the system normally used in Asia market. This series of product is good in flexibility and suitable for most of the environment temperatures. It is also Low Fire Hazard. The electrical and mechanical performances are approved with IEC 61386 standard. The material is RoHS approved as well. Applicable for electrical protection in Buildings, Railway System, Marines, Elevators, and etc..
Feature
-
Material:
Galvanized Steel -
Profile：
Square-lock -
Temperature Range :
-45℃~+350℃ -
IP Rating :
IP 40
-
Flexibility :
High (≤ 2") -
Tensile Resistance :
500N -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PAG13X-10 | 8.0 | 10.7 | 25 | 50 | 300*300*100 |  | - |
| 12 | 5/16 | PAG13X-12 | 10.3 | 13.0 | 30 | 50 | 300*300*200 | |  |
| 16 | 3/8 | PAG13X-16 | 12.6 | 15.6 | 35 | 50 | 330*330*200 | | |
| 20 | 1/2 | PAG13X-20 | 16.1 | 19.7 | 35 | 50 | 380*380*210 | | |
| 25 | 3/4 | PAG13X-25 | 21.1 | 24.7 | 45 | 50 | 450*450*220 | | |
| 32 | 1 | PAG13X-32 | 26.8 | 30.7 | 50 | 25 | 450*450*200 | | |
| 40 | 1-1/4 | PAG13X-40 | 35.4 | 40.2 | 65 | 25 | 500*500*250 | | |
| 50 | 1-1/2 | PAG13X-50 | 40.3 | 44.9 | 85 | 25 | 550*550*200 | | |
| 63 | 2 | PAG13X-63 | 51.6 | 56.6 | 90 | 15 | 550*550*500 |  | |
| 75 | 2-1/2 | PAG13X-75 | 63.3 | 70.3 | 145 | 10 | 550*550*450 | | |
| 90 | 3 | PAG13X-90 | 78.0 | 85.6 | 170 | 10 | 1000*1000*200 | | |
| 110 | 4 | PAG13X-110 | 102.5 | 110.1 | 210 | 10 | 1000*1000*400 | | |
