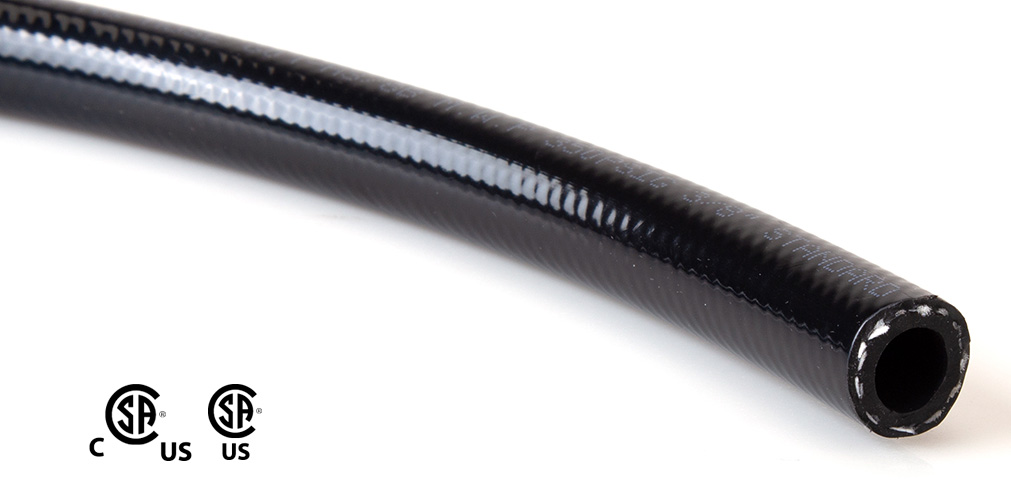

LP Gas Hose
The KAIFLEX Liquefied Petroleum Gas Hose (LP Gas Hose) - G01 Series is made by double layers of polyvinyl chloride (PVC) with imbedded reinforced yarn (Polyester yarn). The LP Gas Hose is pressure resistant, anti-corrosion, liable for repeated bending and material complies with RoHS environmental requirements. This series of hose has been certified with the UL 569 (Low pressure), UL 21 and CSA 8.3 (High pressure) standard. Available in bulk or cut lengths.
It is suitable to transfer natural gas or propane gas for home burner system, patio heaters, portable camping stove, propane camping stove, gas discharging industry, RV appliances, etc.
Feature
-
Material:
PVC + Polyester yarn + PVC -
Temperature Range：
-40℃～100℃ -
Color :
Black -
Working Pressure Rating：
350psig (High Pressure), 1psig (Low Pressure) -
Flexibility :
High -
Flammability Rating：
FT4 -
UV & Ozone Resistance：
Yes -
RoHs Compliance：
Yes -
Certificate：
cCSAus (High Pressure), CSAus (Low Pressure), File No. 303828
Parameter
LP Gas High Pressure Hose (UL 21, CSA 8.3)
| Nominal Conduit Size | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Package (ft/m) | Certificate |
|---|---|---|---|---|---|---|
| 1/4 | G01-H1/4B | 6.15~6.73 | 13.12~14.26 | 102 | 305/100 |  |
| 5/16 | G01-H5/16B | 7.73~8.31 | 14.62~15.76 | 102 | 305/100 | |
| 3/8 | G01-H3/8B | 9.32~9.90 | 15.62~16.76 | 102 | 305/100 | |
LP Gas Low Pressure Hose (UL 569)
| Nominal Conduit Size | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Package (ft/m) | Certificate |
|---|---|---|---|---|---|---|
| 5/16 | G01-L5/16B | 7.73~8.31 | 14.62~15.76 | 32 | 305/100 |  |
| 3/8 | G01-L3/8B | 9.32~9.90 | 15.62~16.76 | 39 | 305/100 | |
