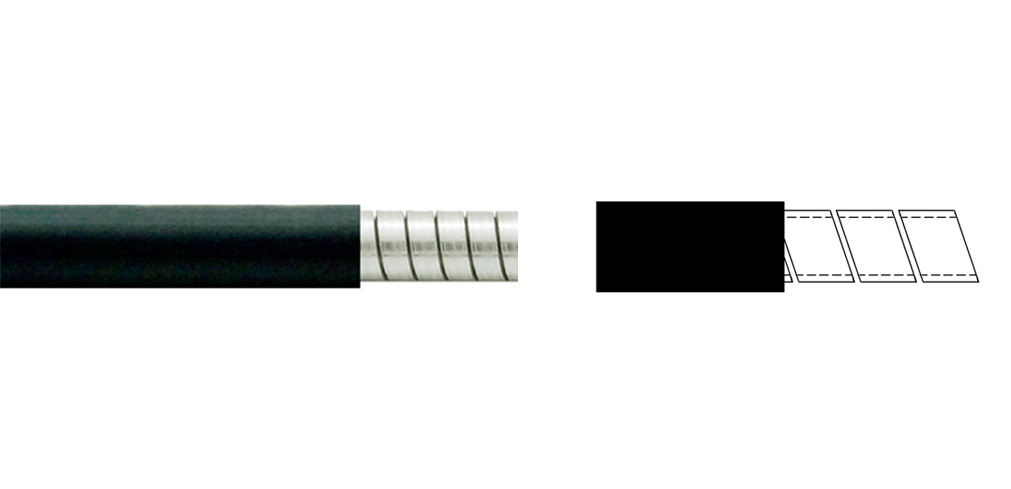

Stainless Steel Mono Coil Tube + PVC Jacket
Flexible Electrical Conduit, Mono Coil Type (MC2-K-P) is manufactured with stainless steel strip or stainless steel wire by continuous wound in mono coil profile. The conduit sizes is ID 0.6~5.0mm. The feature of this series product are included smaller-caliber, lighter weight, higher bending resistance and superior flexibility. For those locations with splash or higher humidity, electrical flexible conduit with plastic jacket is recommended.
Applications: Extensively applied for the optical measuring instrument, medical instruments, industrial endoscope, optical communication network system, automated system and equipment, robots, light guide tube and etc.
Feature
-
Material:
Stainless Steel Mono Coil Tube + PVC Jacket -
Temperature Range：
-20℃~+80℃, -40℃~+105℃ -
IP Rating
IP 66 -
Jacket Color：
Grey/Red/Blue/Black (Standard), other colors are available by consult. -
Flexibility：
High -
RoHS：
Yes
Parameter
| Part Number | ID (mm) | OD w/Jacket (mm) | Weight (g/m) | Package/Roll (m) |
|---|---|---|---|---|
| MC2-K006020-SPB | 0.6±0.1 | 2.0±0.1 | 8.9 | 500 |
| MC2-K008020-SPB | 0.8±0.1 | 2.0±0.1 | 9.1 | 500 |
| MC2-K011030-SPB | 1.0±0.1 | 3.0±0.1 | 14.9 | 500 |
| MC2-K015033-SPB | 1.5±0.1 | 3.3±0.1 | 18.9 | 500 |
| MC2-K018040-SPB | 1.8±0.1 | 4.0±0.1 | 27.5 | 500 |
| MC2-K022040-SPB | 2.2±0.1 | 4.0±0.1 | 37.9 | 500 |
| MC2-K030050-SPB | 3.0±0.1 | 5.0±0.1 | 37.9 | 500 |
| MC2-K035060-SPB | 3.5±0.2 | 6.0±0.2 | 55.3 | 200 |
| MC2-K040060-SPB | 4.0±0.2 | 6.0±0.2 | 55.0 | 200 |
| MC2-K045070-SPB | 4.5±0.2 | 7.0±0.2 | 68.8 | 200 |
| MC2-K050070-SPB | 5.0±0.2 | 7.0±0.2 | 66.7 | 200 |
