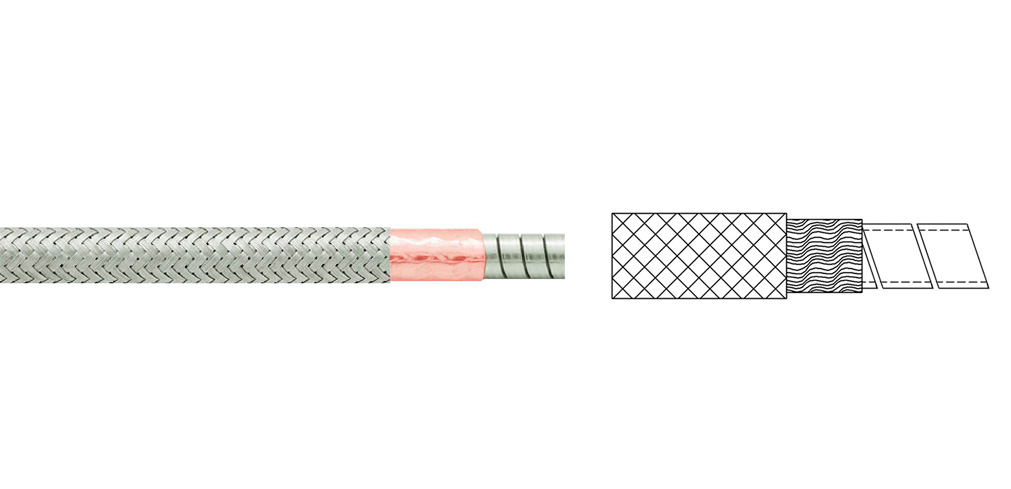

Stainless Steel Mono Coil Tube + Copper Foil + Tinned Copper Braiding
Flexible Electrical Conduit, Mono Coil Type (MC4-K-BTB) is manufactured with stainless steel strip or stainless steel wire by continuous wound in mono coil profile. The conduit sizes is ID 0.6~9.0mm. The feature of this series product are included smaller-caliber, lighter weight, higher bending resistance and superior flexibility. As for the demand of higher preventing the interference of microwave or static electricity in the environment (EMC shielding), electrical flexible conduit with metal foil and metal mesh braiding is the proper one to choose.
Applications: Extensively applied for the optical measuring instrument, medical instruments, industrial endoscope, optical communication network system, automated system and equipment, robots, light guide tube and etc.
Feature
-
Material:
Stainless Steel Mono Coil Tube + Copper Foil + Tinned Copper Braiding -
Temperature Range：
-40℃~+350℃ -
IP Rating
IP 40 -
Flexibility：
High -
Tensile Resistance：
High -
EMC Shielding：
Advanced High -
RoHS：
Yes
Parameter
| Part Number | ID (mm) | OD w/Braiding (mm) | Weight (g/m) | Package/Roll (m) |
|---|---|---|---|---|
| MC4-K006012-SBTB | 0.6±0.1 | 1.2±0.1 | 8.4 | 200 |
| MC4-K008015-SBTB | 0.8±0.1 | 1.5±0.1 | 9.7 | 200 |
| MC4-K010020-SBTB | 1.0±0.1 | 2.0±0.1 | 11.2 | 200 |
| MC4-K015025-SBTB | 1.5±0.1 | 2.5±0.1 | 16.2 | 200 |
| MC4-K018027-SBTB | 1.8±0.1 | 2.7±0.1 | 21.5 | 200 |
| MC4-K022032-SBTB | 2.2±0.1 | 3.2±0.1 | 24.4 | 200 |
| MC4-K030042-SBTB | 3.0±0.1 | 4.2±0.1 | 36.4 | 200 |
| MC4-K035048-SBTB | 3.5±0.2 | 4.8±0.2 | 47.5 | 100 |
| MC4-K040050-SBTB | 4.0±0.2 | 5.0±0.2 | 50.8 | 100 |
| MC4-K045055-SBTB | 4.5±0.2 | 5.5±0.2 | 57.4 | 100 |
| MC4-K050062-SBTB | 5.0±0.2 | 6.2±0.2 | 64.1 | 100 |
| MC4-K060072-SBTB | 6.0±0.2 | 7.2±0.2 | 81.5 | 100 |
| MC4-K068080-SBTB | 6.8±0.2 | 8.0±0.2 | 93.8 | 100 |
| MC4-K070082-SBTB | 7.0±0.2 | 8.2±0.2 | 97.1 | 100 |
| MC4-K080092-SBTB | 8.0±0.2 | 9.2±0.2 | 102.1 | 100 |
| MC4-K085098-SBTB | 8.5±0.2 | 9.8±0.2 | 113.7 | 100 |
| MC4-K090102-SBTB | 9.0±0.2 | 10.2±0.2 | 120.1 | 100 |
