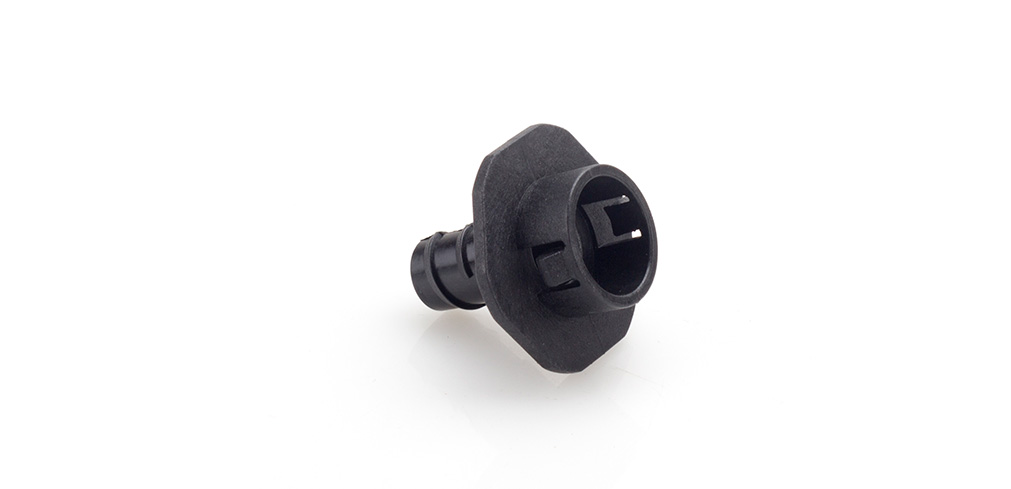

Liquid Tight Non-Metallic Flexible Conduit Fitting, Screw In Type, Straight Type
Liquid Tight Non-Metallic Fitting, Screw In Type, N161 series, the body is made of PA (Nylon) with RoHS compliance. The compact structure of this fitting offers feature of moisture and water seal to protect the wiring system. Because fire retardant and resistance of low temperature, corrosion and oil, this series of fitting is benefit to apply to indoor or outdoor environments after assembled with the liquid tight flexible conduit series PLFNCB and PLFNCB2.
Feature
-
Material:
PA (Nylon) -
Color:
Black -
Temperature Range :
-20℃~+105℃ -
IP Rating :
IP 66 (Fit with connector series: PLFNCB & PLFNCB2) -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
| Nominal Conduit Size | Nominal Conduit Size | NPT Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Mated With |
|---|---|---|---|---|---|---|
| 12 | 3/8 | 3/8" | N161-3/8 | 800 | - |  |
| 16 | 1/2 | - | - | - | - | |
| 21 | 3/4 | - | - | - | - |
