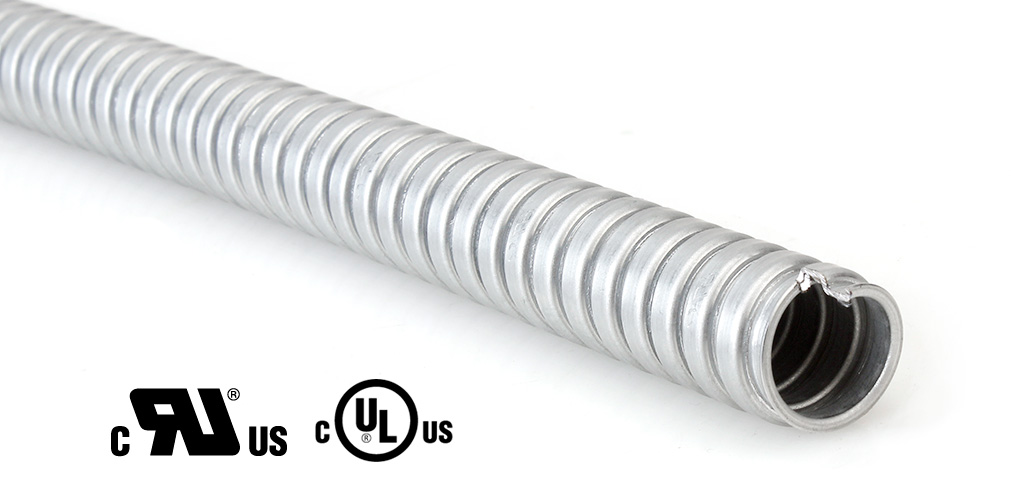

Galvanized Steel Flexible Metal Conduit (Square Lock)
Flexible Metal Conduit - XP3 Series, is manufactured with hot dip galvanized steel strip by continuous wound in square-lock profile having exceptional impact resistance and flexibility. That is beneficial for wiring protection in different types of environment. The galvanized steel is compliant with RoHS code and corrosion resistance. The flexible metal conduit is approved by UL lab according to UL1 standard and have certificate of Recognized.
Available to use to protect the power, communication, signal lines of office furniture or medical equipment.
Feature
-
Material:
Galvanized Steel (Square Lock) -
Temperature Range:
-50℃~+350℃ -
IP Rating:
IP 40 -
Flexibility:
High -
RoHS Compliance:
Yes -
Certificate:
cURus (File No.：E238089)
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (ft/m) | Certificate | Mated With | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | |||||||
| - | 9/16 | XP3-9/16 | 13.89 | 14.9 | 17.91 | 19.1 | 70 | 100 / 30.5 |  |  |
| - | 5/8 | XP3-5/8 | 15.6 | 16.5 | 19.7 | 20.6 | 75 | 100 / 30.5 | | |
