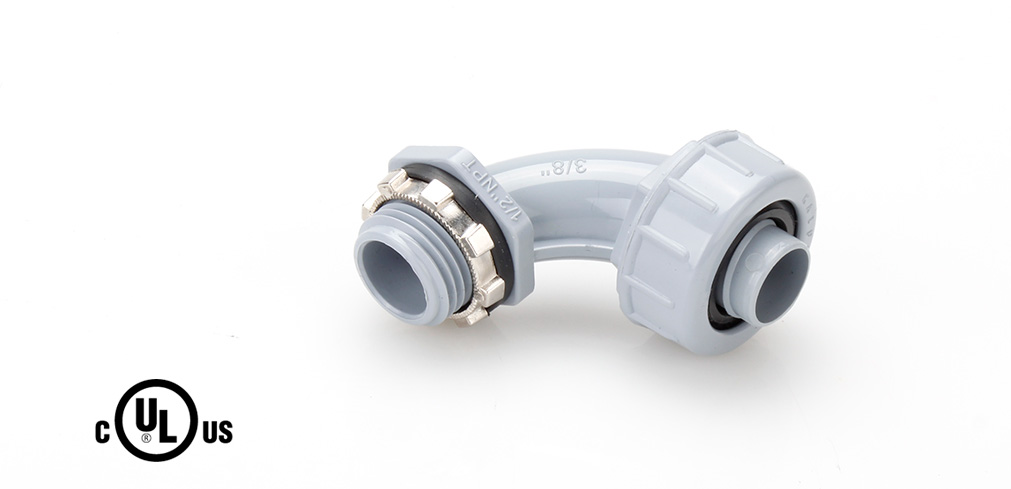

Liquid Tight Non-Metallic Flexible Conduit Fitting, 90 Degree Elbow

Liquid Tight Non-Metallic Fitting P53 series is certified by UL laboratory according to UL514B and Canadian CSA-C22.2 No.56 standard. The fitting is applied on the relay or end point of wiring system to connect flexible conduits, junction box or enclosure for wiring extension and protection. The body is made of polyvinyl chloride (PVC) with RoHS compliance. The fitting is fixed to the junction box or tapped entries by locknut with male NPT thread system and connected with flexible conduit by a nut. This series of connector is designed to 90-degree elbow that is particularly applicable for limited space where the wiring system ended to a junction box or enclosure. The compact structure of this fitting offers feature of moisture and water seal to protect the wiring system. Because fire retardant and resistance of low temperature, corrosion, oil and UV, this series of fitting is benefit to apply to indoor or outdoor environments after assembled with the liquid tight flexible conduit series PLFNCB, PLFNCB2, PULTG, PCULTG, PCBLTG, PHLTG and PNKLTG.
