Flexible Metal Conduit, Square-lock SUS, PVC Jacket

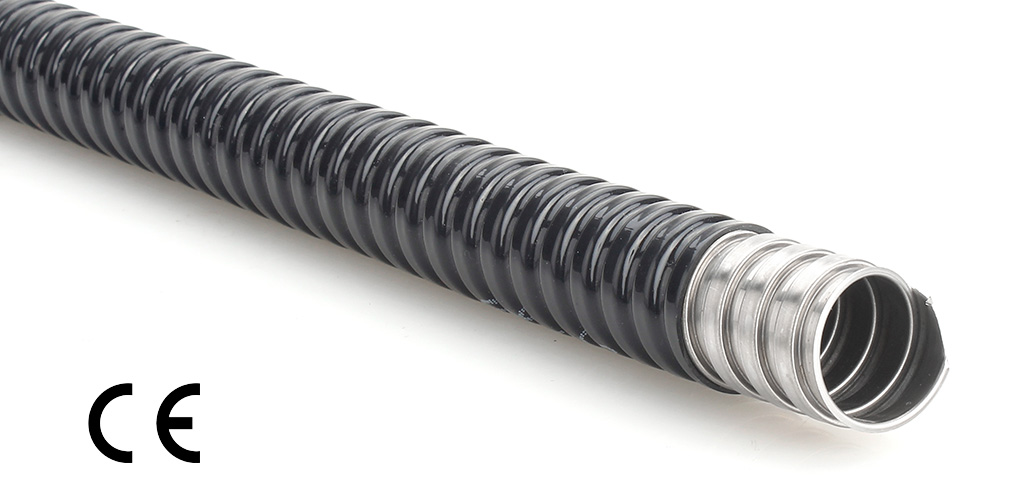

Waterproof Flexible Metal Conduit, PVC Flexible Conduit - PAS13PVC series consists of stainless steel square-lock flexible conduit and PVC waterproof jacket which features with high mechanical characteristics, watertight, fire retardant and corrosion-resistant for wire and cable protection. Full range of flexible metal conduit size meets with the system normally used in the Asia market and with excellent flexibility. All materials are compliant with the RoHS standard. This series of the product meets with IEC 61386 standard and has been developed with 3 classified levels, Light, Medium & Heavy, to satisfy different requirements; no matter that are industrial areas with complex and severe environment conditions, railway system demanding high safety & reliability or the commercial applications that always expect good durability and more. Recommend to have complete protection efficiency for the whole wiring system by adopting fitting series AZ01, AZ05, AZ09, AZ11, AZ60~AZ63.
Feature
-
Material:
Stainless Steel + PVC Jacket -
Profile：
Square-lock -
Temperature Range :
-20℃~+80℃，-40℃~+105℃ -
IP Rating :
IP 40 (Fit with connector series: AZ01, AZ05, AZ62)
IP 64 (Fit with connector series: AZ09, AZ11, AZ60, AZ61 & AZ63) -
Jacket Color :
Black (Standard), other colors are available by consult. -
Flexibility :
High (≤ 2") -
Fire Retardant :
Yes (Black) -
UV Resistance :
By ordering -
Tensile Resistance :
500N -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PAS13PVC-10 | 8.0 | 10.8 | 30 | 50 | 300*300*110 |  | - |
| 12 | 5/16 | PAS13PVC-12 | 10.3 | 14.0 | 60 | 50 | 300*300*200 | |  |
| 16 | 3/8 | PAS13PVC-16 | 12.6 | 16.6 | 70 | 50 | 370*370*150 | | |
| 20 | 1/2 | PAS13PVC-20 | 16.1 | 20.7 | 70 | 50 | 430*430*200 | | |
| 25 | 3/4 | PAS13PVC-25 | 21.1 | 25.7 | 70 | 50 | 500*500*150 | | |
| 32 | 1 | PAS13PVC-32 | 26.8 | 32.7 | 100 | 25 | 500*500*300 | | |
| 40 | 1-1/4 | PAS13PVC-40 | 35.4 | 42.2 | 120 | 25 | 550*550*320 | | |
| 50 | 1-1/2 | PAS13PVC-50 | 40.3 | 46.9 | 170 | 25 | 550*550*350 | | |
| 63 | 2 | PAS13PVC-63 | 51.6 | 58.6 | 200 | 15 | 550*550*300 | | |
| 75 | 2-1/2 | PAS13PVC-75 | 63.0 | 72.0 | 240 | 10 | 550*550*500 | | |
| 90 | 3 | PAS13PVC-90 | 78.0 | 87.6 | 280 | 10 | 1000*1000*100 | | |
