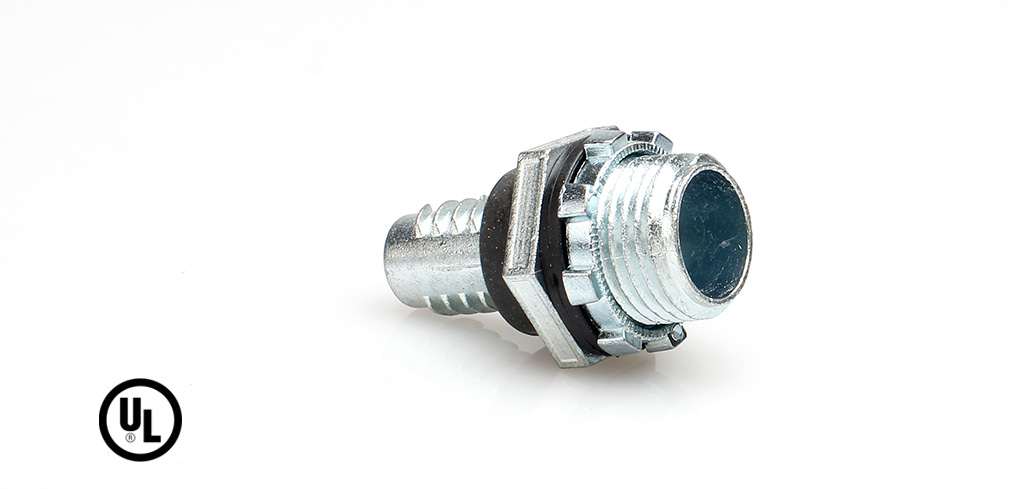

Chicago Plenum Flexible Metal Tubing Fitting, Straight Type, Male Threaded
Chicago Plenum Flexible Metal Tubing Fitting
Feature
-
Material:
Zinc Alloy -
Temperature Range:
-50℃~+200℃ -
IP Rating:
P 66 (Fit with PFMT conduit series) -
Surface Finish :
Zinc plated, other treatments are available by consult. -
RoHS Compliance:
Yes -
Certificate :
UL (S271-3/8, S272-1/2), File No.: E508301
Parameter
| Nominal Conduit Size | NPT Thread | Part Number | Appropriate Conduit Size (mm) | Package/Box (pcs) | Weight/Box (kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 3/8 | 1/2 | S271-3/8 | 12.29~12.80 | 800 | 19.2 |  |  |
| 1/2 | 1/2 | S272-1/2 | 15.75~16.26 | 800 | 21.8 | | |
| 3/4 | 3/4 | S273-3/4 | 20.83~21.34 | 500 | 29.3 | |
