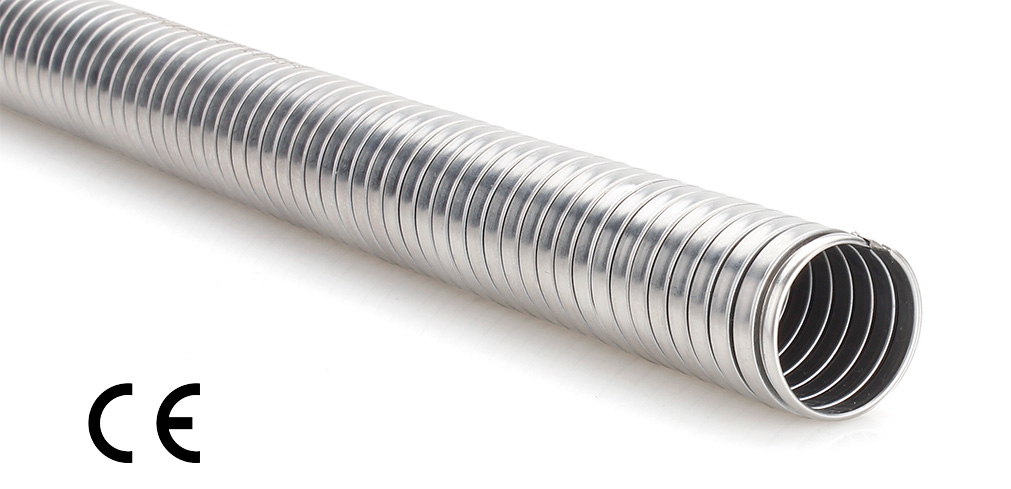

Reinforced Type - Flexible Metal Conduit, Interlocked Stainless Steel
This "Reinforced Type" product - PS2 series has been reformed to be much tighter on profile.That has enhanced the protective effectiveness of the metal flexible conduit. The upgrade performances of tensile resistance, impact resistance & anti damage fulfill the application requirements for harsh or severe environments. Recommend to have complete protection efficiency for whole wiring system by adopting fitting series S50 and S53.
Feature
-
Material:
Stainless Steel -
Profile：
Interlocked -
Temperature Range :
-45℃~+350℃ -
IP Rating :
IP 40
-
Flexibility :
Medium (≤ 2") -
Tensile Resistance :
1000N -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (m) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|---|
| 10 | 1/4 | P095125S2 | 9.5 | 12.5 | 30 | 50 |  | - |
| 12 | 3/8 | P125157S2 | 12.5 | 15.5 | 50 | 50 | |  |
| 16 | 1/2 | P161195S2 | 16.1 | 19.5 | 60 | 50 | | |
| 21 | 3/4 | P208243S2 | 20.8 | 24.3 | 70 | 50 | | |
| 27 | 1 | P260300S2 | 26.0 | 30.0 | 80 | 25 | | |
| 35 | 1-1/4 | P350390S2 | 35.0 | 39.0 | 120 | 25 | | |
| 41 | 1-1/2 | P400450S2 | 40.0 | 45.0 | 150 | 15 | | |
| 53 | 2 | P510560S2 | 51.0 | 56.0 | 190 | 15 | | |
