Non-metallic Mechanical Protection Tubing, Stainless Steel Braiding, PA6 (V0 / V2)

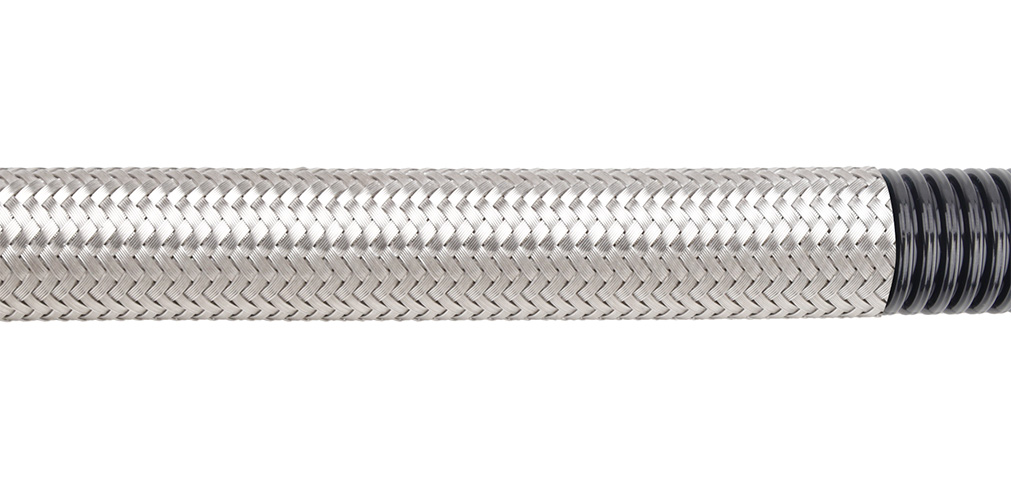

Non-metallic Mechanical Protection Tubing, Nylon Corrugated Flexible Conduit - Stainless Steel Braiding Type (PAFSSB / PACSSB), is made of Polyamide (PA) in corrugated shape. That makes the tube feature with high mechanical strength, strong toughness, attrition resistance and anti-aging. Suitable for various mechanical protection. The metal braiding structure enhances the character of abrasion & tensile resistance. Other than this, it is also available to screen the EMC. This series of product is most recommended for those applications with severe environment conditions.
Widely used for wiring protection in railway systems, carriage, machines and data facilities.
Feature
-
Material:
Nylon 6 (Polyamide 6，PA6) + Stainless Steel Braiding -
Temperature Range:
-40℃~+105℃ -
Flexibility：
Medium -
Flammability Rating：
UL94 V-0, UL94 V-2 -
UV Resistance：
Yes -
EMC Shielding：
Standard -
Environmental Protection：
RoHs Compliance, Halogen Free
Parameter
V0 Rating
| Nominal Conduit Size | Nominal Conduit Size | V0 Part Number | ID (mm) | OD w/Braiding (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxHmm) |
|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PAFSV0SB-10 | 6.45±0.25 | 11.1±0.2 | 25 | 50 | 330*330*100 |
| 13 | 5/16 | PAFSV0SB-13 | 9.45±0.25 | 14.1±0.2 | 30 | 50 | 341*341*120 |
| 16 | 3/8 | PAFSV0SB-16 | 11.9±0.25 | 17.3±0.3 | 50 | 50 | 440*440*150 |
| 21 | 1/2 | PAFSV0SB-21 | 16.7±0.25 | 22.6±0.25 | 50 | 50 | 517*517*180 |
| 28 | 3/4 | PAFSV0SB-28 | 22.9±0.25 | 29.9±0.35 | 50 | 50 | 550*550*300 |
| 28 | 3/4 | PACSV0SB-28 | 22.3±0.25 | 30.0±0.35 | 75 | 50 | 550*550*300 |
| 34 | 1 | PAFSV0SB-34 | 29.1±0.3 | 36.2±0.3 | 70 | 25 | 605*605*200 |
| 34 | 1 | PACSV0SB-34 | 27.9±0.3 | 36.3±0.3 | 90 | 25 | 605*605*200 |
| 42 | 1-1/4 | PACSV0SB-42 | 35.2±0.5 | 44.3±0.3 | 100 | 25 | 473*473*280 |
| 48 | 1-1/2 | PACSV0SB-48 | 41.2±0.4 | 49.8±0.3 | 110 | 25 | 726*726*200 |
| 54 | 2 | PACSV0SB-54 | 47.1±0.4 | 56.3±0.3 | 125 | 25 | 847*847*280 |
V2 Rating
| Nominal Conduit Size | Nominal Conduit Size | V2 Part Number | ID (mm) | OD w/Braiding (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxHmm) |
|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PAFSV2SB-10 | 6.45±0.25 | 11.1±0.2 | 25 | 50 | 330*330*100 |
| 13 | 5/16 | PAFSV2SB-13 | 9.45±0.25 | 14.1±0.2 | 30 | 50 | 341*341*120 |
| 16 | 3/8 | PAFSV2SB-16 | 11.9±0.25 | 17.3±0.3 | 50 | 50 | 440*440*150 |
| 21 | 1/2 | PAFSV2SB-21 | 16.7±0.25 | 22.6±0.25 | 50 | 50 | 517*517*180 |
| 28 | 3/4 | PAFSV2SB-28 | 22.9±0.25 | 29.9±0.35 | 50 | 50 | 550*550*300 |
| 28 | 3/4 | PACSV2SB-28 | 22.3±0.25 | 30.0±0.35 | 75 | 50 | 550*550*300 |
| 34 | 1 | PAFSV2SB-34 | 29.1±0.3 | 36.2±0.3 | 70 | 25 | 605*605*200 |
| 34 | 1 | PACSV2SB-34 | 27.9±0.3 | 36.3±0.3 | 90 | 25 | 605*605*200 |
| 42 | 1-1/4 | PACSV2SB-42 | 35.2±0.5 | 44.3±0.3 | 100 | 25 | 473*473*280 |
| 48 | 1-1/2 | PACSV2SB-48 | 41.2±0.4 | 49.8±0.3 | 110 | 25 | 726*726*200 |
| 54 | 2 | PACSV2SB-54 | 47.1±0.4 | 56.3±0.3 | 125 | 25 | 847*847*280 |
