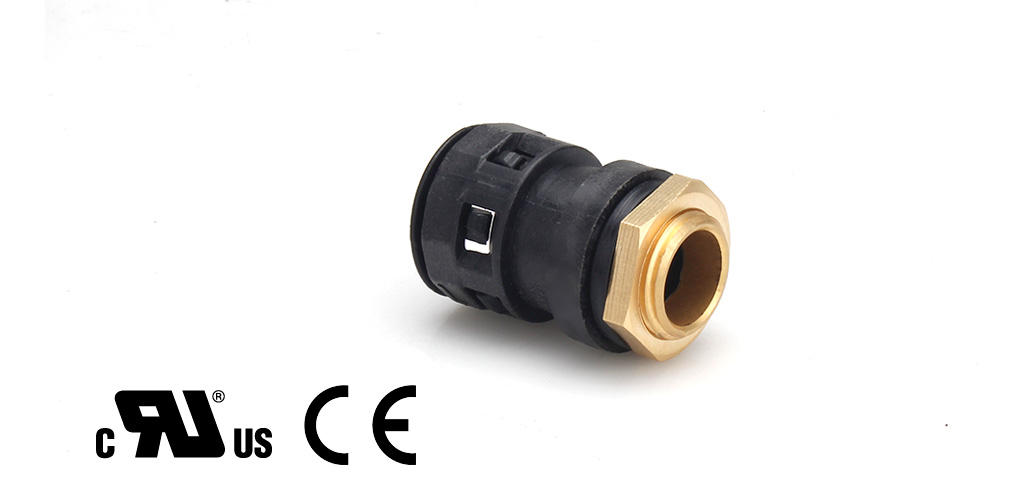

Nylon Fitting, Quick Type, Straight Type, Metal Thread (V0 / V2)
Nylon Fitting -Quick Type (FN02 Series) has been certified according to UL1696 and CSA C22.2 No.227.3 standard by mating with Nonmetallic Mechanical Protection Tubing (PAFS). The fitting is produced with Polyamide (PA) and designed by considering easy installation and also good mechanical strength. Further features of attrition resistance, fire retardant, resist low temperature and UV make nylon fitting be able to use in controlled or rough environments.
For locations existing constant vibration, FN02 series with metal thread is recommended.
Feature
-
Material:
PA66 (UL94 V-0), PA6 (UL94 V-2) -
Thread System：
NPT, M, PG & G -
Temperature Range：
-40℃~+120℃ -
IP Rating：
IP 66 -
Flammability Rating：
UL94 V-0, UL94 V-2 -
UV Resistance：
Yes -
Environmental Protection：
RoHs Compliance, Halogen Free -
Certificate：
cRUus (File No. E491228), CE
Parameter
NPT Thread
| Nominal Conduit Size | Nominal Conduit Size | NPT Thread | Part Number (V0 / V2) | Package/Box (pcs) | Weight/Box (kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 10 | 1/4 | 1/4" | FN0210-NPT1/4-V0 FN0210-NPT1/4-V2 | 660 | 13.4 |  |  |
| 13 | 5/16 | 1/2" | FN0213-NPT1/2-V0 FN0213-NPT1/2-V2 | 400 | 15.1 | | |
| 16 | 3/8 | 1/2" | FN0216-NPT1/2-V0 FN0216-NPT1/2-V2 | 300 | 15.1 | | |
| 21 | 1/2 | 1/2" | FN0221-NPT1/2-V0 FN0221-NPT1/2-V2 | 240 | 9.7 | | |
| 28 | 3/4 | 3/4" | FN0228-NPT3/4-V0 FN0228-NPT3/4-V2 | 150 | 9.6 | | |
| 34 | 1 | 1" | FN0234-NPT1-V0 FN0234-NPT1-V2 | 120 | 11.3 | | |
| 42 | 1-1/4 | 1-1/4" | FN0242-NPT1-1/4-V0 FN0242-NPT1-1/4-V2 | 60 | 9.0 | | |
| 54 | 2 | 2" | FN0254-NPT2-V0 FN0254-NPT2-V2 | 54 | 14.1 | | |
M Thread
| Nominal Conduit Size | Nominal Conduit Size | M Thread | Part Number (V0 / V2) | Package/Box (pcs) | Weight/Box (kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 10 | 1/4 | M12 | FN0210-M12-V0 FN0210-M12-V2 | 660 | 13.4 |  | |
| 13 | 5/16 | M16 | FN0213-M16-V0 FN0213-M16-V2 | 400 | 15.1 | | |
| 16 | 3/8 | M20 | FN0216-M20-V0 FN0216-M20-V2 | 300 | 15.1 | | |
| 21 | 1/2 | M20 | FN0221-M20-V0 FN0221-M20-V2 | 240 | 9.7 | | |
| 28 | 3/4 | M25 | FN0228-M25-V0 FN0228-M25-V2 | 150 | 9.6 | | |
| 34 | 1 | M32 | FN0234-M32-V0 FN0234-M32-V2 | 120 | 11.3 | | |
| 42 | 1-1/4 | M40 | FN0242-M40-V0 FN0242-M40-V2 | 60 | 9.0 | | |
| 54 | 2 | M63 | FN0254-M63-V0 FN0254-M63-V2 | 54 | 14.1 | | |
PG Thread
| Nominal Conduit Size | Nominal Conduit Size | PG Thread | Part Number (V0 / V2) | Package/Box (pcs) | Weight/Box (kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 10 | 1/4 | PG7 | FN0210-PG7-V0 FN0210-PG7-V2 | 660 | 13.4 | | |
| 13 | 5/16 | PG9 | FN0213-PG9-V0 FN0213-PG9-V2 | 400 | 15.1 | | |
| 16 | 3/8 | PG11 | FN0216-PG11-V0 FN0216-PG11-V2 | 300 | 15.1 | | |
| 21 | 1/2 | PG16 | FN0221-PG16-V0 FN0221-PG16-V2 | 240 | 9.7 | | |
| 28 | 3/4 | PG21 | FN0228-PG21-V0 FN0228-PG21-V2 | 150 | 9.6 | | |
| 34 | 1 | PG29 | FN0234-PG29-V0 FN0234-PG29-V2 | 120 | 11.3 | | |
| 42 | 1-1/4 | PG36 | FN0242-PG36-V0 FN0242-PG36-V2 | 60 | 9.0 | | |
| 54 | 2 | PG48 | FN0254-PG48-V0 FN0254-PG48-V2 | 54 | 14.1 | | |
G Thread
| Nominal Conduit Size | Nominal Conduit Size | G Thread | Part Number (V0 / V2) | Package/Box (pcs) | Weight/Box (kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 10 | 1/4 | 1/4" | FN0210-G1/4-V0 FN0210-G1/4-V2 | 660 | 13.4 | | |
| 13 | 5/16 | 1/2" | FN0213-G1/2-V0 FN0213-G1/2-V2 | 400 | 15.1 | | |
| 16 | 3/8 | 1/2" | FN0216-G1/2-V0 FN0216-G1/2-V2 | 300 | 15.1 | | |
| 21 | 1/2 | 1/2" | FN0221-G1/2-V0 FN0221-G1/2-V2 | 240 | 9.7 | | |
| 28 | 3/4 | 3/4" | FN0228-G3/4-V0 FN0228-G3/4-V2 | 150 | 9.6 | | |
| 34 | 1 | 1" | FN0234-G1-V0 FN0234-G1-V2 | 120 | 11.3 | | |
| 42 | 1-1/4 | 1-1/4" | FN0242-G1-1/4-V0 FN0242-G1-1/4-V2 | 60 | 9.0 | | |
| 54 | 2 | 2" | FN0254-G2-V0 FN0254-G2-V2 | 54 | 14.1 | | |
