Home > (US) Flexible Conduit & Fitting > Explosion Proof Flexible Coupling & Adapter (UL/IECEx/TS) > KF--LK-M Series

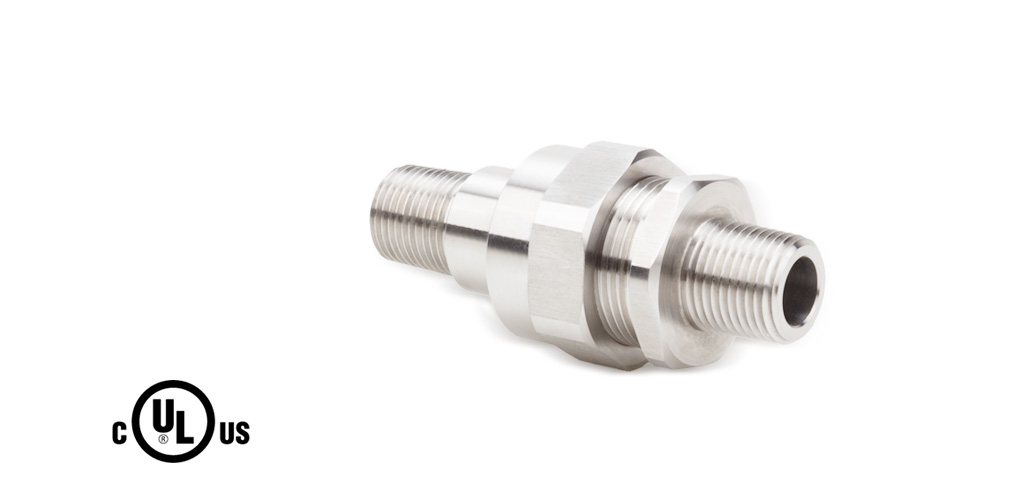

UL Explosion Proof Flexible Coupling Adapter, Straight Type, Two Male Adapter (1/2"~6")
Feature Parameter Related Products Document

Feature

  • Structure/Material：

    Structure/Material：

    - Standard：Stainless Steel 304 (1/2"~6")
    - Option：Stainless Steel 316 (1/2"~6"), Brass (1/2"~2"), Iron (2-1/2"~6")
  • Size：

    Size：

    1/2"~6"
  • Compression Strength：

    Compression Strength：

    Max. 6000 psi (1/2", 3/4"), Max. 1200 psi (1"~2")
  • Thread：

    Thread：

    NPT, M
  • RoHS Compliance:

    RoHS Compliance:

    Yes
  • Certificate：

    Certificate：

    cULus (E490826)
  • Standard：

    Standard：

    ANSI/UL 1203
  • Suitable for use in Hazardous (Classified) Locations :

    Suitable for use in Hazardous (Classified) Locations :

    Size：1/2", 3/4"
    --- Class I, Division 1, Groups A, B, C, D (Gases)
    --- Class II, Division 1, Groups E, F, G (Dust)
    --- Class III (Fibers)

    Size：1", 1-1/4", 1-1/2", 2"
    --- Class I, Division 1, Groups C, D (Gases)
    --- Class II, Division 1, Groups E, F, G (Dust)
    --- Class III (Fibers)

    Size：2-1/2", 3", 4", 5", 6"
    --- Class II, Division 1, Groups E, F, G (Dust)
    --- Class III (Fibers)

Parameter

M Thread

Nominal Conduit SizeM ThreadPart Number (SUS 304)Package/Box (pcs)Weight/Box (kg)CertificateMated With
1/2M20x1.5KF--LK1M11103.7
3/4M25x1.5KF--LK2M11104.6
1M32x1.5KF--LK3M11107.6
1-1/4M40x1.5KF--LK4M1154.6
1-1/2M50x1.5KF--LK5M1155.7
2M63x1.5KF--LK6M1158.1
2-1/2M75x1.5KF--LK7M112-
3M90x2KF--LK8M112-
4M110x2KF--LK9M112-
5M140x2KF--LK10M111-
6M164x2KF--LK11M111-


NPT Thread

Nominal Conduit SizeM ThreadPart Number (SUS 304)Package/Box (pcs)Weight/Box (kg)CertificateMated With
1/21/2"KF--LK1M21103.7
3/43/4"KF--LK2M21104.6
11"KF--LK3M21107.6
1-1/41-1/4"KF--LK4M2154.6
1-1/21-1/2"KF--LK5M2155.7
22"KF--LK6M2158.1
2-1/22-1/2"KF--LK7M212-
33"KF--LK8M212-
44"KF--LK9M212-
55"KF--LK10M211-
66"KF--LK11M211-


M Thread (Rotating) / NPT Thread (Fixed)

Nominal Conduit SizeM/NPT ThreadPart Number (SUS 304)Package/Box (pcs)Weight/Box (kg)CertificateMated With
1/2M20 x NPT1/2KF--LK1M31103.7
3/4M25 x NPT3/4KF--LK2M31104.6
1M32 x NPT1KF--LK3M31107.6
1-1/4M40 x NPT1-1/4KF--LK4M3154.6
1-1/2M50 x NPT1-1/2KF--LK5M3155.7
2M63 x NPT2KF--LK6M3158.1
2-1/2M75 x NPT2-1/2KF--LK7M312-
3M90 x NPT3KF--LK8M312-
4M110 x NPT4KF--LK9M312-
5M140 x NPT5KF--LK10M311-
6M164 x NPT6KF--LK11M311-


NPT Thread (Rotating) / M Thread (Fixed)

Nominal Conduit SizeNPT/M ThreadPart Number (SUS 304)Package/Box (pcs)Weight/Box (kg)CertificateMated With
1/2NPT1/2 x M20KF--LK1M41103.7
3/4NPT3/4 x M25KF--LK2M41104.6
1NPT1 x M32KF--LK3M41107.6
1-1/4NPT1-1/4 x M40KF--LK4M4154.6
1-1/2NPT1-1/2 x M50KF--LK5M4155.7
2NPT2 x M63KF--LK6M4158.1
2-1/2NPT2-1/2 x M75KF--LK7M412-
3NPT3 x M90KF--LK8M412-
4NPT4 x M110KF--LK9M412-
5NPT5 x M140KF--LK10M411-
6NPT6 x M164KF--LK11M411-
