Home > (US) Flexible Conduit & Fitting > Explosion Proof Flexible Coupling & Adapter (UL/IECEx/TS) > KF--XG-F/M Series

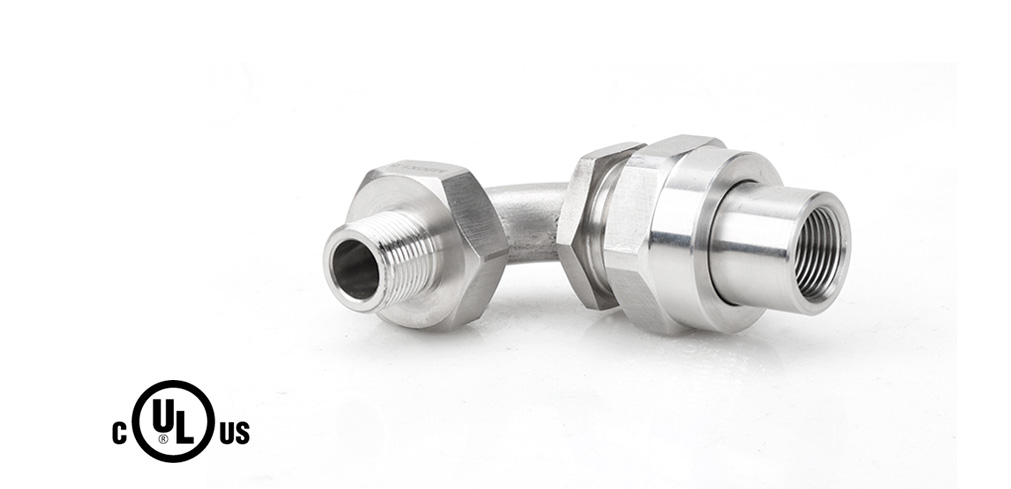

UL Explosion Proof Flexible Coupling Adapter, 90 Degree Elbow Type, Rotating Female to Male Adapter (1/2"~6")
Feature Parameter Related Products Document

Feature

  • Structure/Material：

    Structure/Material：

    - Standard：Stainless Steel 304 (1/2"~6")
    - Option：Stainless Steel 316 (1/2"~6"), Brass (1/2"~2"), Iron (2-1/2"~6")
  • Size：

    Size：

    1/2"~6"
  • Compression Strength：

    Compression Strength：

    Max. 6000 psi (1/2", 3/4"), Max. 1200 psi (1"~2")
  • Thread：

    Thread：

    NPT, M
  • RoHS Compliance:

    RoHS Compliance:

    Yes
  • Certificate：

    Certificate：

    cULus (E490826)
  • Standard：

    Standard：

    ANSI/UL 1203
  • Suitable for use in Hazardous (Classified) Locations :

    Suitable for use in Hazardous (Classified) Locations :

    Size：1/2", 3/4"
    --- Class I, Division 1, Groups A, B, C, D (Gases)
    --- Class II, Division 1, Groups E, F, G (Dust)
    --- Class III (Fibers)

    Size：1", 1-1/4", 1-1/2", 2"
    --- Class I, Division 1, Groups C, D (Gases)
    --- Class II, Division 1, Groups E, F, G (Dust)
    --- Class III (Fibers)

    Size：2-1/2", 3", 4", 5", 6"
    --- Class II, Division 1, Groups E, F, G (Dust)
    --- Class III (Fibers)

Parameter

M Thread

Nominal Conduit SizeM ThreadPart Number (SUS 304)Package/Box (pcs)Weight/Box (kg)CertificateMated With
1/2M20x1.5KF--XG1F/M1162.8
3/4M25x1.5KF--XG2F/M1163.9
1M32x1.5KF--XG3F/M1165.4
1-1/4M40x1.5KF--XG4F/M1122.4
1-1/2M50x1.5KF--XG5F/M1123
2M63x1.5KF--XG6F/M1124.3
2-1/2M75x1.5KF--XG7F/M111-
3M90x2KF--XG8F/M111-
4M110x2KF--XG9F/M111-
5M140x2KF--XG10F/M111-
6M164x2KF--XG11F/M111-


NPT Thread

Nominal Conduit SizeM ThreadPart Number (SUS 304)Package/Box (pcs)Weight/Box (kg)CertificateMated With
1/21/2"KF--XG1F/M2162.8
3/43/4"KF--XG2F/M2163.9
11"KF--XG3F/M2165.4
1-1/41-1/4"KF--XG4F/M2122.4
1-1/21-1/2"KF--XG5F/M2123
22"KF--XG6F/M2124.3
2-1/22-1/2"KF--XG7F/M211-
33"KF--XG8F/M211-
44"KF--XG9F/M211-
55"KF--XG10F/M211-
66"KF--XG11F/M211-


M Thread (Rotating) / NPT Thread (Fixed)

Nominal Conduit SizeM/NPT ThreadPart Number (SUS 304)Package/Box (pcs)Weight/Box (kg)CertificateMated With
1/2M20 x NPT1/2KF--XG1F/M3162.8
3/4M25 x NPT3/4KF--XG2F/M3163.9
1M32 x NPT1KF--XG3F/M3165.4
1-1/4M40 x NPT1-1/4KF--XG4F/M3122.4
1-1/2M50 x NPT1-1/2KF--XG5F/M3123
2M63 x NPT2KF--XG6F/M3124.3
2-1/2M75 x NPT2-1/2KF--XG7F/M311-
3M90 x NPT3KF--XG8F/M311-
4M110 x NPT4KF--XG9F/M311-
5M140 x NPT5KF--XG10F/M311-
6M164 x NPT6KF--XG11F/M311-


NPT Thread (Rotating) / M Thread (Fixed)

Nominal Conduit SizeNPT/M ThreadPart Number (SUS 304)Package/Box (pcs)Weight/Box (kg)CertificateMated With
1/2NPT1/2 x M20KF--XG1F/M4162.8
3/4NPT3/4 x M25KF--XG2F/M4163.9
1NPT1 x M32KF--XG3F/M4165.4
1-1/4NPT1-1/4 x M40KF--XG4F/M4122.4
1-1/2NPT1-1/2 x M50KF--XG5F/M4123
2NPT2 x M63KF--XG6F/M4124.3
2-1/2NPT2-1/2 x M75KF--XG7F/M411-
3NPT3 x M90KF--XG8F/M411-
4NPT4 x M110KF--XG9F/M411-
5NPT5 x M140KF--XG10F/M411-
6NPT6 x M164KF--XG11F/M411-
