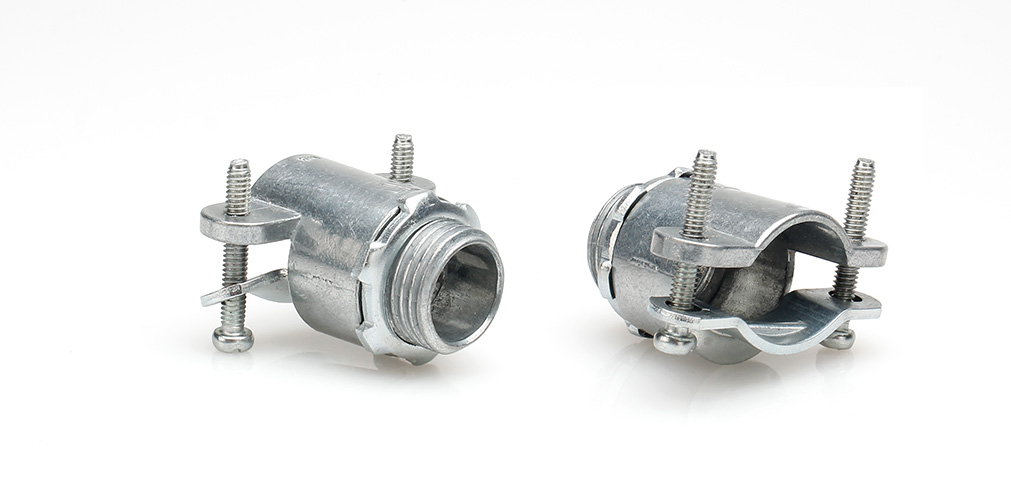

Bx-Flex Conduit Fitting, Two Screw Type
Bx-Flex Conduit Fitting, Two Screw Type - S29 series is designed and mated with XPO Flexible Oval Steel Conduit. The slightly flat outline of S29 fitting body is good for the OA wiring system. The S29 conduit fitting is made of zinc alloy and compliant with RoHS code. The metal flexible conduit is connected to S29 conduit fitting by clamping the cover with two screws. This series of conduit fitting is proposed to fit with metal flexible conduit series XPO & PRWG.
Feature
-
Material:
Zinc Alloy -
Temperature Range:
-50℃~+200℃ -
IP Rating:
IP 40 -
Surface Finish :
Chromate, other treatments are available by consult. -
RoHS Compliance:
Yes -
Certificate :
CE
Parameter
| Series No. | Part Number | NPS Thread | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|
| S29 | S292-1/2 | 1/2" | 300 | 16 |  |  |
| S29 | S292-5/8 | 1/2" | 300 | 16 | |  |
