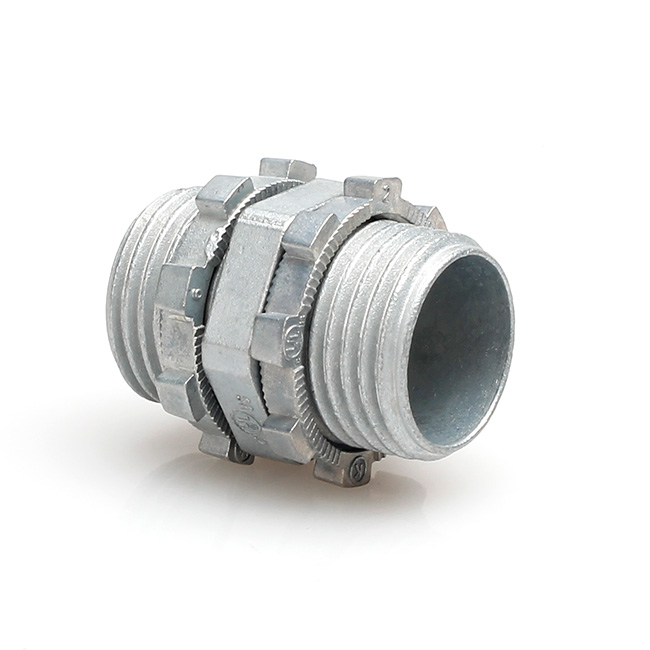

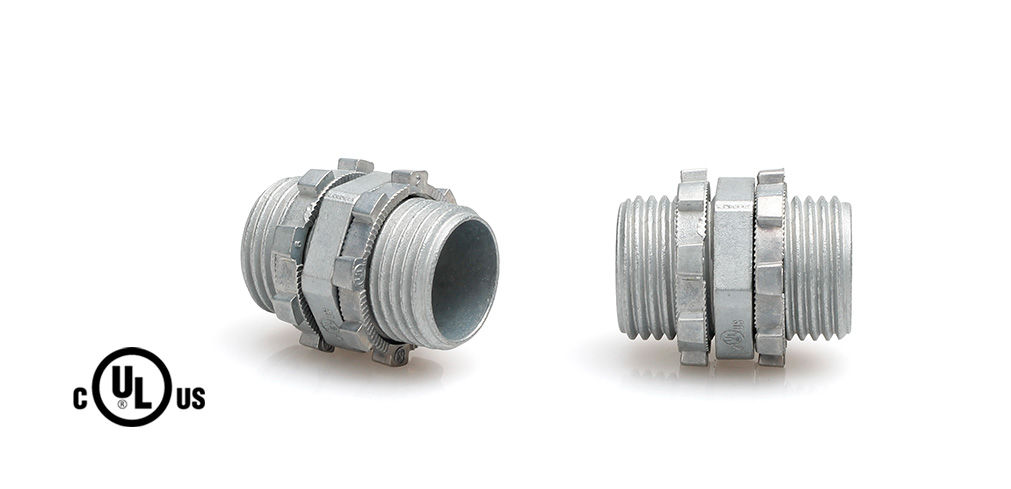

Box Spacer Connector
Box Spacer Connector - S35 series is certified by UL laboratory according to UL514B and Canadian CSA-C22.2 No.56 standard. Used as raceway between two box or enclosure...
Feature
-
Material:
Zinc Alloy -
Temperature Range:
-50℃~+200℃ -
IP Rating:
N/A (Connect with box) -
Surface Finish :
Chromate, other treatments are available by consult. -
RoHS Compliance:
Yes -
Certificate :
UL, cUL (File No.: E256570)
Parameter
| Series No. | Part Number | Product Photo | KO Size (Inch) | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| S35 | S352-1/2 |  | 1/2 | 400 | 13.4 |  |  |
