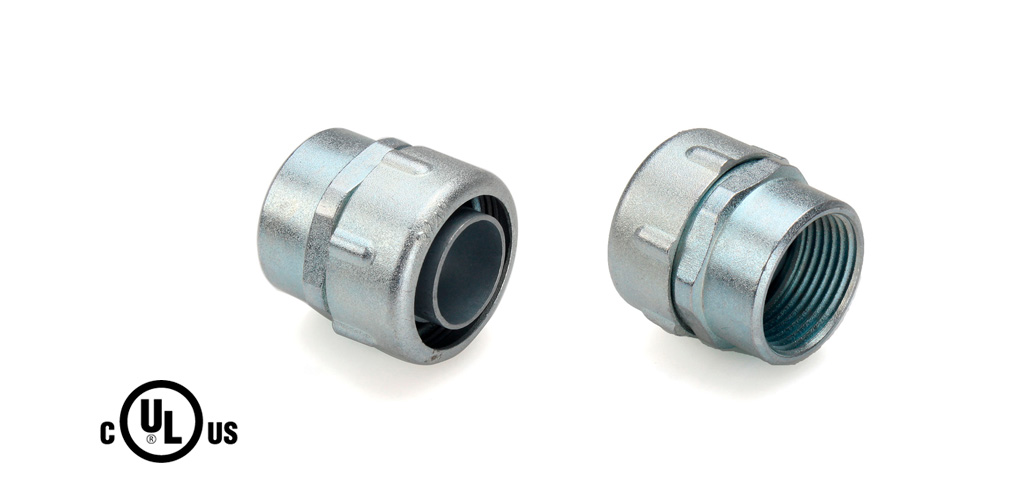

Liquid Tight Conduit Fitting, Straight Type, Female Threaded
Liquid Tight Metal Conduit Fitting S51 series is certified by UL laboratory according to UL514B and Canadian CSA-C22.2 No.56 standard. S51 series metal fittings are applied on the relay point close to the end of wiring system to switch the EMT to metal flexible conduits for convenient termination and complete wiring protection. The body is made of zinc alloy with RoHS compliance. The fitting is fitted to threaded EMT by female NPT thread system and connected with metal flexible conduit by a nut. It benefits to apply to indoor or outdoor environments after assembled with the liquid tight metal flexible conduit series PULTG, PCBLTG, PHLTG and PNKLTG.
Feature
-
Material:
Zinc Alloy -
Temperature Range:
-20℃~+90℃ -
IP Rating:
IP 66 (Fit with conduit series: PULTG, PCBLTG, PHLTG & PNKLTG) -
Surface Finish :
Zinc plated, other treatments are available by consult. -
RoHS Compliance :
Yes -
Certificate :
cULus (File No.: E256570)
Parameter
| Nominal Conduit Size | Nominal Conduit Size | NPT Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 12 | 3/8 | 1/2" | S511-3/8 | 500 | 18.5 |  |  |
| 16 | 1/2 | 1/2" | S512-1/2 | 500 | 19.5 | | |
| 21 | 3/4 | 3/4" | S513-3/4 | 240 | 17.8 | | |
| 27 | 1 | 1" | S514-1 | 160 | 18.6 | | |
| 35 | 1-1/4 | 1-1/4" | S515-1-1/4 | 80 | 15.4 | | |
| 41 | 1-1/2 | 1-1/2" | S516-1-1/2 | 60 | 13.6 | | |
| 53 | 2 | 2" | S517-2 | 50 | 18 | | |
