Flexible Metal Conduit, Interlocked Gal, PVC Jacket

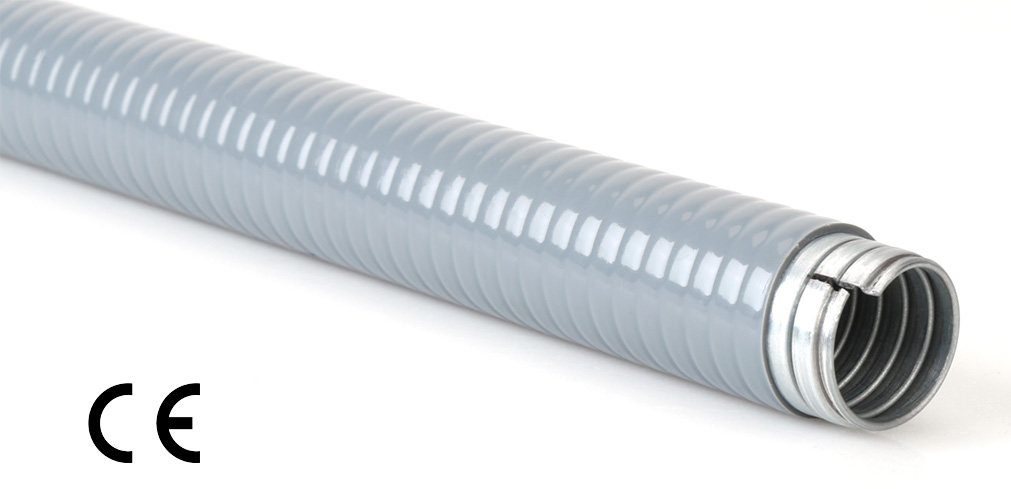

Waterproof Flexible Metal Conduit, PVC Coated Flexible Conduit - PLTG23PVC series consists of galvanized steel interlock flexible conduit and PVC waterproof jacket which features with high mechanical characteristics, watertight, fire retardant and corrosion resistant for wire and cable protection.
All materials are compliant with RoHS standard. Full range of conduit size meets with the system normally used in Asia market and with excellent tensile strength and impact resistance. This series of product meets with IEC 61386 standard and has been developed with 3 classified levels, Light, Medium & Heavy, to satisfy different requirements; no matter that are industrial areas with complex and severe environment conditions, railway system demanding high safety & reliability or the commercial applications that always expect good durability and more.
Recommend to have complete protection efficiency for whole wiring system by adopting fitting series AZ50, AZ51, AZ53, AZ60, AZ61 & AZ63. Widely used in commercial buildings, industrial plant, machine tool, shipyards, marine or boat, computer rooms, etc.
Feature
-
Material:
Galvanized Steel + PVC Jacket -
Profile：
Interlocked -
Temperature Range :
-20℃~+80℃ -
IP Rating :
IP 40 (Fit with connector series: AZ52 & AZ62)
IP 64 (Fit with connector series: AZ50, AZ51, AZ53, AZ60, AZ61 & AZ63) -
Flexibility :
Medium (≤ 2") -
Jacket Color :
Black/Grey (Standard), other colors are available by consult. -
Fire Retardant :
Self-extinguishing -
UV Resistance :
Yes(Black) -
Tensile Resistance :
500N -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Package/Roll (ft/m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 16 | 3/8 | PLTG23PVC-3/8 | 12.29~12.80 | 17.50~18.00 | 60.8 | 100/30.5 | 440*440*140 |  |
| 20 | 1/2 | PLTG23PVC-1/2 | 15.80~16.31 | 20.80~21.30 | 92.55 | 100/30.5 | 440*440*160 | |
| 25 | 3/4 | PLTG23PVC-3/4 | 20.83~21.34 | 25.20~26.70 | 117.95 | 100/30.5 | 500*500*180 | |
| 32 | 1 | PLTG23PVC-1 | 26.44~27.08 | 32.80~33.40 | 175.1 | 100/30.5 | 600*600*300 | |
| 40 | 1-1/4 | PLTG23PVC-1-1/4 | 35.05~35.81 | 41.40~42.20 | 213.2 | 50/15.3 | 750*750*130 | |
| 50 | 1-1/2 | PLTG23PVC-1-1/2 | 40.01~40.64 | 47.40~48.30 | 238.6 | 50/15.3 | 750*750*250 | |
| 63 | 2 | PLTG23PVC-2 | 51.31~51.94 | 59.40~60.30 | 292.6 | 25/7.6 | 900*900*120 | |
