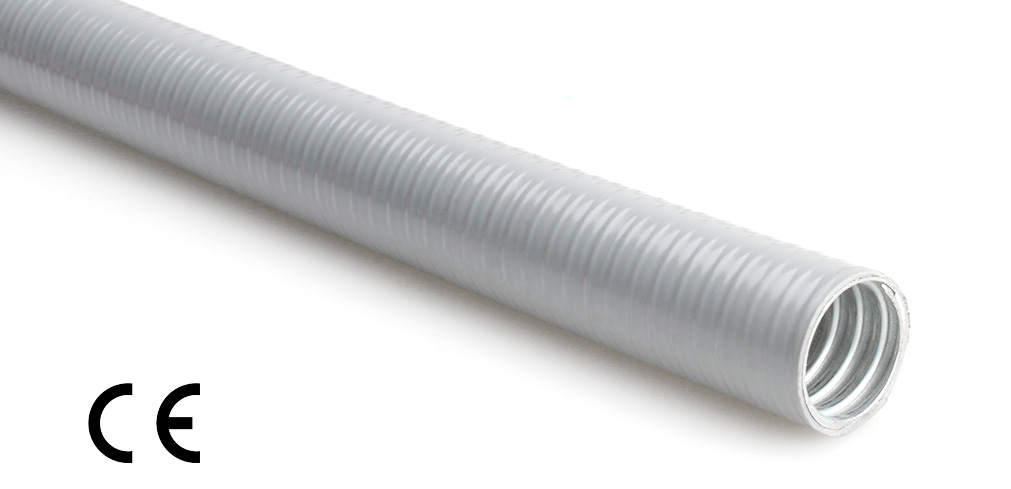

Liquid Tight Flexible Metal Conduit (Lightweight)
The full range of product is developed by following the conduit size of UL360 standard with good flexibility for easy wiring. Applicable for the protection of circuit with 600 volt or lower in locations where no UL certification is required, including commercial buildings, industrial plant, shipyards, marine or boat, computer rooms and etc.
Feature
-
Material:
Galvanized Steel (Square Lock) + Cotton Thread + PVC Jacket -
Temperature Range:
-20℃~+80℃ -
IP Rating:
IP 40 (Fit with connector series: AZ52)
IP 64 (Fit with connector series: AZ50, AZ51 & AZ53) -
Jacket Color :
Black/Grey (Standard), other colors are available by consult. -
Flexibility :
Medium -
Fire Retardant :
Self-extinguishing -
UV Resistance :
Yes (Black) -
RoHS Compliance :
Yes (Black) -
Certificate :
CE
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Package/Roll (ft/m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 12 | 3/8 | PLTG13PVC-3/8 | 12.29~12.80 | 17.50~18.00 | 50.8 | 100 / 30.5 | 440*440*140 |  |
| 16 | 1/2 | PLTG13PVC-1/2 | 15.80~16.31 | 20.80~21.30 | 82.55 | 100 / 30.5 | 440*440*160 | |
| 21 | 3/4 | PLTG13PVC-3/4 | 20.83~21.34 | 25.20~26.70 | 107.95 | 100 / 30.5 | 500*500*180 | |
| 27 | 1 | PLTG13PVC-1 | 26.44~27.08 | 32.80~33.40 | 165.1 | 100 / 30.5 | 600*600*300 | |
| 35 | 1-1/4 | PLTG13PVC-1-1/4 | 35.05~35.81 | 41.40~42.20 | 203.2 | 50 / 15.3 | 750*750*130 | |
