Protecting Vulnerable Fiber Assets: Heavy-Duty Interlocked Flexible Conduits for High-Power Industrial Laser Systems

Project Overview & Background

In the advanced industrial automation market, high-power fiber laser systems—such as laser cutting, welding, and cleaning machines—represent high-value capital assets. The optical fiber cables running from the central laser source to the cutting head are the lifeblood of these systems.

A leading global developer of industrial-grade fiber laser sources (generating multi-kilowatt outputs) faced severe operational reliability challenges under aggressive field conditions. The delicate internal optical cladding and control wiring required an uncompromising protective enclosure capable of enduring continuous mechanical manipulation and hazardous machining waste.

The Critical Engineering Challenges

In modern smart factories, industrial laser heads travel along multi-axis gantry systems at extreme speeds and accelerations. This operational environment created three severe failure risks for standard electrical conduits:

1. 1.The Danger of Micro-Bending & Over-Bending: Optical fibers are highly sensitive to physical stress. If a conduit bends past the fiber’s critical bending radius, it induces micro-bending losses, severely degrading laser beam quality or fracturing the expensive quartz core.

2. 2.Aggressive Chemical & Hot Spatter Exposure: Laser cutting and welding applications generate a constant barrage of superheated metal slags and airborne debris. Simultaneously, the frequent use of anti-rust cutting fluids and industrial lubricants causes conventional plastic jackets to degrade, harden, and crack within months.

3. 3.Severe Mechanical Torsion & Pulling: Continuous high-speed, multi-axis kinetic movements subject the cable assembly to intense torsional twisting and directional dragging forces.

The Kaiflex Engineered Solution

To safeguard these mission-critical fiber optic arrays, the engineering team implemented the Kaiflex WP-S2P1 Series High-Tensile Interlocked Stainless Steel Flexible Conduit (featuring a distinctive high-visibility yellow jacket formulation).

1. 1.Premium Stainless Steel Interlocked Core：Anti-Crush & Built-In Mechanical Stopping。The underlying core of the WP-S2P1 utilizes a precision-formed, double-groove interlocked stainless steel structure. Unlike standard square-locked conduits, the interlocked design provides massive anti-crush resilience and acts as a physical mechanical stop, inherently preventing the conduit from over-bending beyond the optical fiber’s safety threshold.

2. 2.Advanced Heavy-Duty PVC Formulation：Flame-Retardant & Cut-Resistant Shielding。The core is continuously extruded with a proprietary, heavy-walled, oil-resistant, and flame-retardant PVC compound. This smooth yellow outer jacket repels high-temperature metal spatters and resists molecular breakdown when exposed to aggressive industrial cutting oils.

3. 3.High-Visibility System Integration：Enhanced Safety Audit Compliance。The high-visibility yellow jacket provides instant visual differentiation for high-risk laser lines under raised floors or along robot arms, simplifying factory safety audits and preventing accidental structural impacts during routine plant maintenance.

Quantifiable Project Outcomes

Transitioning to the Kaiflex WP-S2P1 integrated cable protection system delivered immediate, measurable optimization to the laser manufacturer's global fleet:

1. 1.Zero Fiber Fracture Incidents: The mechanical bend-limiting profile of the interlocked stainless steel spine eliminated fiber-optic micro-bending damage across thousands of operational hours.

2. 2.Conduit Service Life Extended by 300%: The robust oil-resistant PVC compound completely resisted chemical embrittlement, easily outlasting standard commercial conduits in high-frequency washdown environments.

3. 3.Minimized Unscheduled Down-Time: By shielding core fiber runs from hot welding slag burns and pulling fatigue, end-users experienced a drastic drop in unscheduled maintenance overheads, maximizing plant OEE (Overall Equipment Effectiveness).

PRODUCT IN FOCUS:

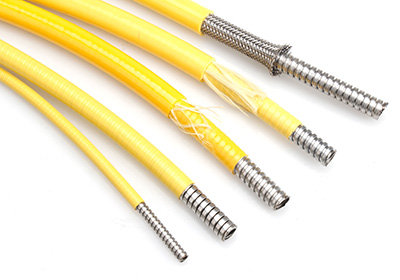

Kaiflex WP-S2P1 Interlocked Stainless Steel Conduit (Yellow Jacket)
