Liquid Tight Flexible Metal Conduit (Tensile Resist)

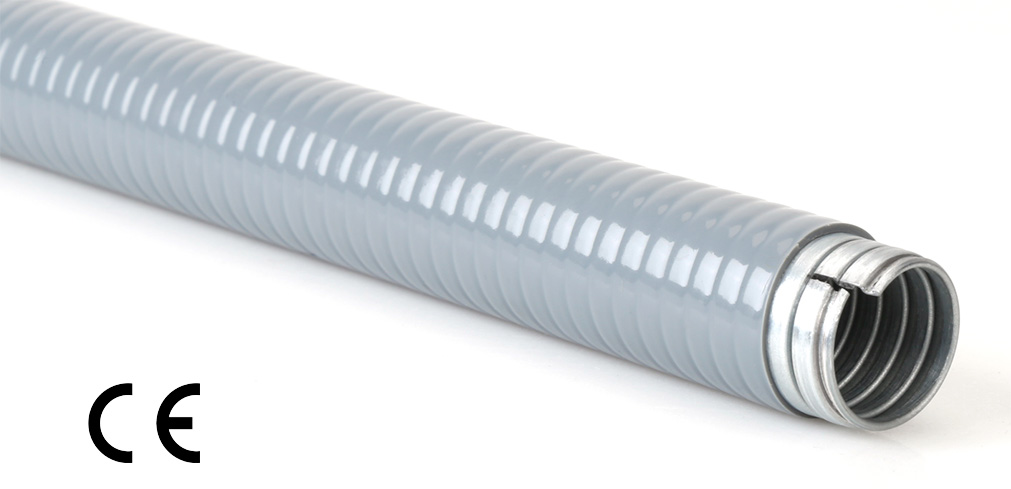

Liquid Tight Flexible Metal Conduit, PVC Coated Flexible Conduit - PLTG23PVC series consists of galvanized steel interlock flexible conduit and PVC waterproof jacket which features with high mechanical characteristics, watertight, fire retardant and corrosion resistant for wire and cable protection.
The full range of product is developed by following the conduit size of UL360 standard with excellent tensile and impact resistance for applications where are more critical in environment conditions. Applicable for the protection of circuit with 600 volt or lower in locations where no UL certification is required, including commercial buildings, industrial plant, machine tool, shipyards, marine or boat, computer rooms, etc.
Recommend to have complete protection efficiency for whole wiring system by adopting fitting series AZ50, AZ51 & AZ53. Widely used in commercial buildings, industrial plant, machine tool, shipyards, marine or boat, computer rooms, etc.
Feature
-
Material:
Galvanized Steel (Interlocked) + PVC Jacket -
Temperature Range:
-20℃~+80℃ -
IP Rating:
IP 40 (Fit with connector series: S52)
IP 66 (Fit with connector series: S50, S51 & S53) -
Jacket Color :
Black/Grey (Standard), other colors are available by consult. -
Flexibility :
Medium -
Fire Retardant :
Self-extinguishing -
UV Resistance :
Yes (Black) -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD w/Jacket (mm) | Bending Radius (mm) | Package/Roll (ft/m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 12 | 3/8 | PLTG23PVC-3/8 | 12.29~12.80 | 17.50~18.00 | 60.8 | 100 / 30.5 | 440*440*140 |  |
| 16 | 1/2 | PLTG23PVC-1/2 | 15.80~16.31 | 20.80~21.30 | 92.55 | 100 / 30.5 | 440*440*160 | |
| 21 | 3/4 | PLTG23PVC-3/4 | 20.83~21.34 | 25.20~26.70 | 117.95 | 100 / 30.5 | 500*500*180 | |
| 27 | 1 | PLTG23PVC-1 | 26.44~27.08 | 32.80~33.40 | 175.1 | 100 / 30.5 | 600*600*300 | |
| 35 | 1-1/4 | PLTG23PVC-1-1/4 | 35.05~35.81 | 41.40~42.20 | 213.2 | 50 / 15.3 | 750*750*130 | |
| 41 | 1-1/2 | PLTG23PVC-1-1/2 | 40.01~40.64 | 47.40~48.30 | 238.6 | 50 / 15.3 | 750*750*250 | |
| 53 | 2 | PLTG23PVC-2 | 51.31~51.94 | 59.40~60.30 | 292.6 | 25 / 7.6 | 900*900*120 | |
