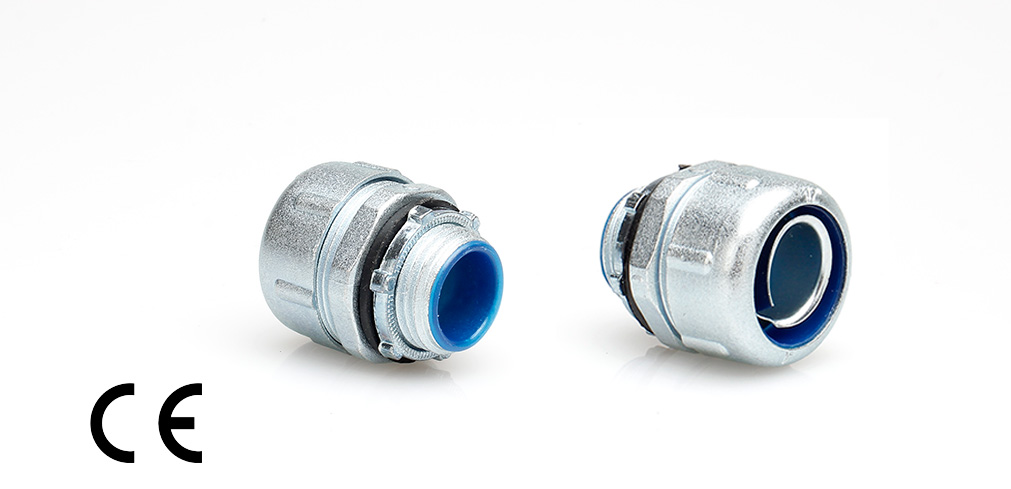

Liquid Tight Conduit Fitting, Straight Type, Male Threaded
Liquid Tight Metal Fitting AZ50 series is applied on the relay or end point of wiring system to connect metal conduits, junction box or enclosure for wiring extension and protection. The body is made of zinc alloy with RoHS compliance. The fitting is fixed to the junction box or tapped entries by locknut with male NPT thread system and connected with metal flexible conduit by a nut. The compact structure of this fitting offers feature of moisture and water seal and high tensile resistance to protect the wiring system and benefit to apply to indoor or outdoor environments after assembled with the liquid tight metal flexible conduit series PLTG13PVC and PLTG23PVC.
Feature
-
Material:
Zinc Alloy -
Temperature Range:
-20℃~+90℃ -
IP Rating:
IP 64 (Fit with conduit series: PLTG13PVC & PLTG23PVC) -
Surface Finish :
Zinc plated, other treatments are available by consult. -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
| Nominal Conduit Size | Nominal Conduit Size | NPT Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Mated With |
|---|---|---|---|---|---|---|
| 12 | 3/8 | 1/2" | NPT1/2-AZ50-3/8 | 500 | 20.9 |  |
| 16 | 1/2 | 1/2" | NPT1/2-AZ50-1/2 | 500 | 35.4 | |
| 21 | 3/4 | 3/4" | NPT3/4-AZ50-3/4 | 300 | 30 | |
| 27 | 1 | 1" | NPT1-AZ50-1 | 160 | 24.5 | |
| 35 | 1-1/4 | 1-1/4" | NPT1-1/4-AZ50-1-1/4 | 100 | 20.6 | |
| 41 | 1-1/2 | 1-1/2" | NPT1-1/2-AZ50-1-1/2 | 60 | 19.8 | |
| 53 | 2 | 2" | NPT2-AZ50-2 | 50 | 27.6 | |
