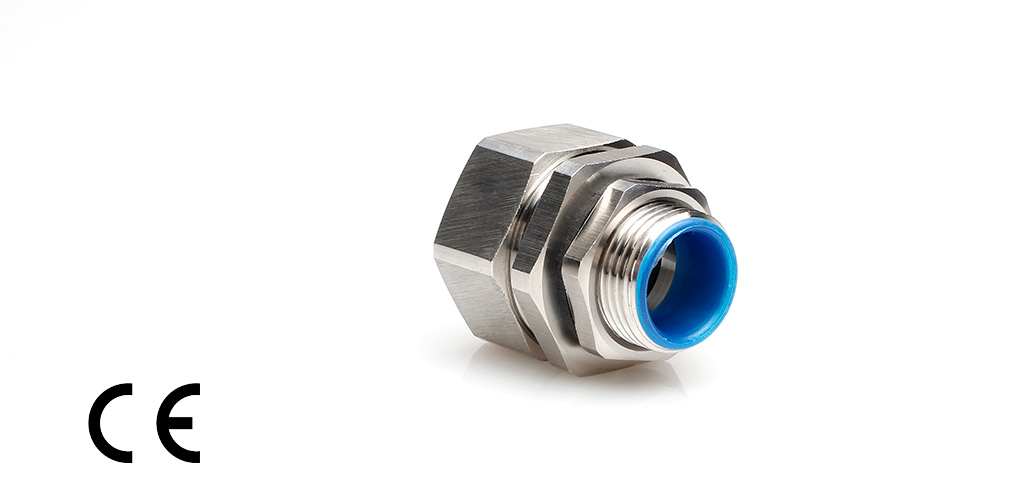

SUS Liquid Tight Conduit Fitting, Straight Type, Male Threaded
The Stainless Steel Liquid Tight Conduit Fitting - AS60 series, is applied on the relay or end point of wiring system to connect metal conduits and junction box/enclosure to extend and protect the system. The body is made of stainless steel with RoHS compliance. The fitting is fixed to the junction box or tapped entries by locknut with G, M and NPT male thread system and connected with metal flexible conduit by a nut. The compact structure of this fitting offers feature of high tensile resistance and moisture/water seal. It can either be fitted with Flexible Metal Conduit-AS series PAG13X and PAS13X or water proof conduit series PAG and PLTG with plastic jacket (PVC/PU/LSZH) to have a water/moisture seal system. That gives the compatibility for both indoor and outdoor environments.
Feature
-
Material:
Stainless Steel -
Temperature Range:
-40℃~+100℃ -
IP Rating:
IP 64 (Fit with Water Proof conduit - PAG & PLTG series) -
RoHS Compliance :
Yes -
REACH Compliance :
Yes -
Certificate :
CE
Parameter
NPT Thread
| Nominal Conduit Size | Nominal Conduit Size | NPT Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 16 | 3/8 | 1/2" | NPT1/2-AS60-3/8 | 25 | 1.28 |  |  |
| 20 | 1/2 | 1/2" | NPT1/2-AS60-1/2 | 16 | 1.1 | | |
| 25 | 3/4 | 3/4" | NPT3/4-AS60-3/4 | 12 | 1.09 | | |
| 32 | 1 | 1" | NPT1-AS60-1 | 9 | 1.13 | | |
| 40 | 1-1/4 | 1-1/4" | NPT1-1/4-AS60-1-1/4 | 5 | 0.95 | | |
| 50 | 1-1/2 | 1-1/2" | NPT1-1/2-AS60-1-1/2 | 4 | 1.34 | | |
| 63 | 2 | 2" | NPT2-AS60-2 | 2 | 0.93 | | |
M Thread
| Nominal Conduit Size | Nominal Conduit Size | M Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 16 | 3/8 | M16x1.5 | M16-AS60-16 | 50 | 2.26 | | |
| 20 | 1/2 | M20x1.5 | M20-AS60-20 | 50 | 3.5 | | |
| 25 | 3/4 | M25x1.5 | M25-AS60-25 | 25 | 2.38 | | |
| 32 | 1 | M32x1.5 | M32-AS60-32 | 20 | 2.52 | | |
| 40 | 1-1/4 | M40x1.5 | M40-AS60-40 | 10 | 1.89 | | |
| 50 | 1-1/2 | M50x1.5 | M50-AS60-50 | 10 | 3.36 | | |
| 63 | 2 | M63x1.5 | M63-AS60-63 | 5 | 2.34 | | |
G Thread
| Nominal Conduit Size | Nominal Conduit Size | G Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 16 | 3/8 | G1/2 | G1/2-AS60-3/8 | 50 | 2.26 | | |
| 20 | 1/2 | G1/2 | G1/2-AS60-1/2 | 50 | 3.5 | | |
| 25 | 3/4 | G3/4 | G3/4-AS60-3/4 | 25 | 2.38 | | |
| 32 | 1 | G1 | G1-AS60-1 | 20 | 2.52 | | |
| 40 | 1-1/4 | G1-1/4 | G1-1/4-AS60-1-1/4 | 10 | 1.89 | | |
| 50 | 1-1/2 | G1-1/2 | G1-1/2-AS60-1-1/2 | 10 | 3.36 | | |
| 63 | 2 | G2 | G2-AS60-2 | 5 | 2.34 | | |
