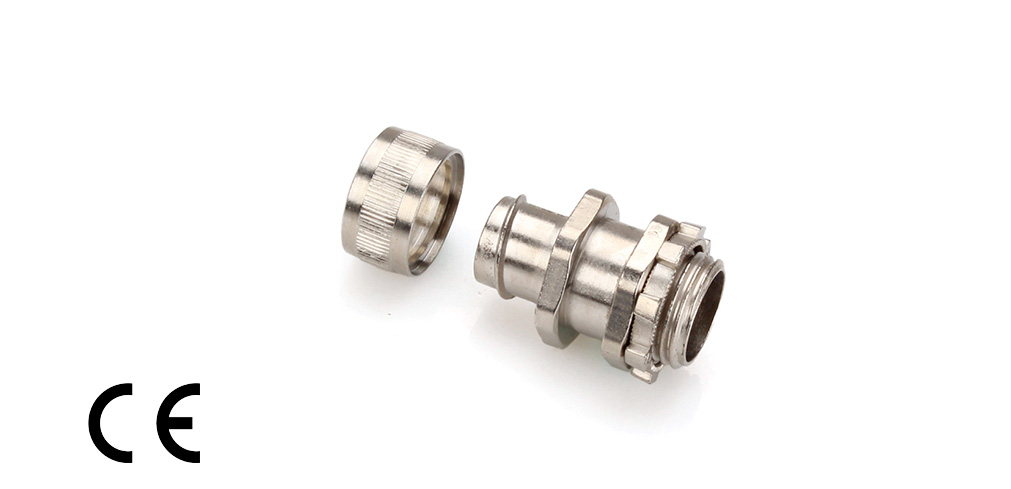

Quick Ass'y, Rotating Type Conduit Fitting
Metal Conduit Fittings AZ05 series is a four-piece swivel straight connector and has been designed to meet with IEC 60423 standard. The AZ05 series is applied on the relay or end point of wiring system to connect metal conduits and junction box or enclosure for wiring extension and protection. The body is made of zinc alloy with RoHS compliance which is connected with metal flexible conduit by screwing in and covering with a nut and fixed to the knockouts of junction box or tapped entries by locknut with optional male thread system, M type, G type or PG type. The concise structure design is benefit for quick and convenient assembly and swivel structure enable quick and efficient installation but remains the feature of high tensile resistance at the mean time. Adding an extra grounding ring for grounding purpose. This series of fitting is proposed to fit with flexible metal conduit series PAG13 and PAS13 with or without plastic jacket.
Feature
-
Material:
Zinc Alloy -
Temperature Range:
-50℃~+200℃ -
IP Rating:
IP 40 -
Surface Finish :
Zinc plated, other treatments are available by consult. -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
G Thread
| Nominal Conduit Size | Nominal Conduit Size | G Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 12 | 5/16 | 1/2" | G1/2-AZ05-5/16 | 600 | 20.8 |  |  |
| 16 | 3/8 | 1/2" | G1/2-AZ05-3/8 | 400 | 17 | | |
| 20 | 1/2 | 1/2" | G1/2-AZ05-1/2 | 320 | 16.7 | | |
| 25 | 3/4 | 3/4" | G3/4-AZ05-3/4 | 200 | 16.6 | | |
| 32 | 1 | 1" | G1-AZ05-1 | 100 | 12.9 | | |
| 40 | 1-1/4 | 1-1/4" | G1-1/4-AZ05-1-1/4 | 50 | 10.4 | | |
| 50 | 1-1/2 | 1-1/2" | G1-1/2-AZ05-1-1/2 | 40 | 10.9 | | |
| 63 | 2 | 2" | G2-AZ05-2 | 30 | 10.5 | | |
| 75 | 2-1/2 | 2-1/2" | G2-1/2-AZ05-2-1/2 | | | ||
| 90 | 3 | 3" | G3-AZ05-3 | | | ||
| 110 | 4 | 4" | G4-AZ05-4 | | |
PG Thread
| Nominal Conduit Size | Nominal Conduit Size | PG Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 12 | 5/16 | PG9 | PG9-AZ05-12 | 600 | 13 | | |
| 16 | 3/8 | PG11 | PG11-AZ05-16 | 400 | 14.2 | | |
| 20 | 1/2 | PG16 | PG16-AZ05-20 | 320 | 15.4 | | |
| 25 | 3/4 | PG21 | PG21-AZ05-25 | 200 | 14.8 | | |
| 32 | 1 | PG29 | PG29-AZ05-32 | 100 | 12 | | |
| 40 | 1-1/4 | PG36 | PG36-AZ05-40 | 50 | 9.9 | | |
| 50 | 1-1/2 | PG42 | PG42-AZ05-50 | 40 | 10.5 | | |
| 63 | 2 | PG48 | PG48-AZ05-63 | 30 | 10 | | |
M Thread
| Nominal Conduit Size | Nominal Conduit Size | M Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 12 | 5/16 | M16x1.5 | M16-AZ05-12 | 600 | 17.2 | | |
| 16 | 3/8 | M16x1.5 | M16-AZ05-16 | 400 | 16.2 | | |
| 20 | 1/2 | M20x1.5 | M20-AZ05-20 | 320 | 17 | | |
| 25 | 3/4 | M25x1.5 | M25-AZ05-25 | 200 | 15.4 | | |
| 32 | 1 | M32x1.5 | M32-AZ05-32 | 100 | 11.9 | | |
| 40 | 1-1/4 | M40x1.5 | M40-AZ05-40 | 50 | 10.3 | | |
| 50 | 1-1/2 | M50x1.5 | M50-AZ05-50 | 40 | 10.6 | | |
| 63 | 2 | M63x1.5 | M63-AZ05-63 | 30 | 10 | | |
| 75 | 2-1/2 | M75x1.5 | M75-AZ05-75 | | | ||
| 90 | 3 | M90x2 | M90-AZ05-90 | | | ||
| 110 | 4 | M110x2 | M110-AZ05-110 | | |
