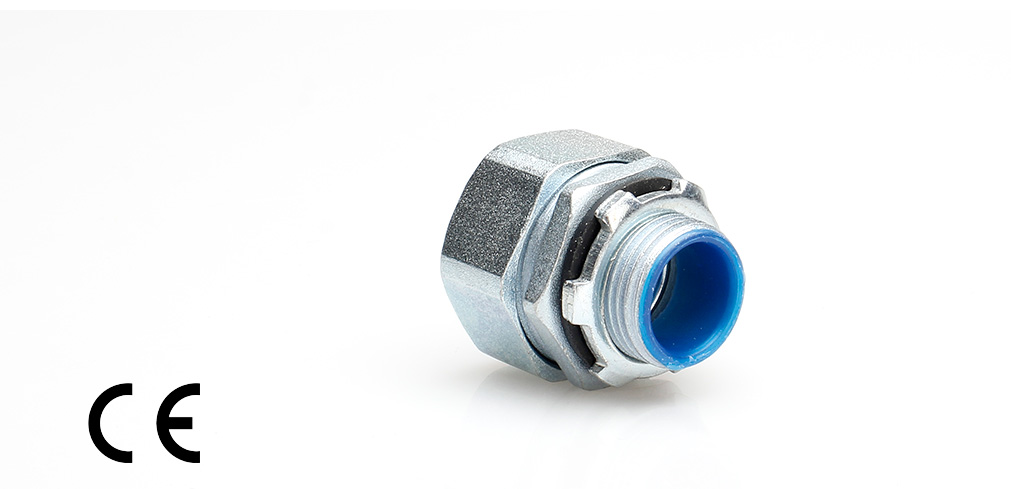

Straight Type, Male Threaded Conduit Fitting
The Straight Type, Male Threaded Conduit Fitting, AZ60 series are applied on the relay or end point of wiring system to connect metal conduits and junction box/enclosure to extend and protect the system. The body is made of zinc alloy with RoHS compliance. The fitting is fixed to the junction box or tapped entries by locknut with G male thread system and connected with metal flexible conduit by a nut. The compact structure of this fitting offers feature of high tensile resistance and moisture/water seal. It can either be fitted with Flexible Metal Conduit-AS series PAG13X and PAS13X or water proof conduit series PAG13, PAS13 and PLTG23 with plastic jacket (PVC/PU/LSZH) to have a water/moisture seal system. That gives the compatibility for both indoor and outdoor environments.
Feature
-
Material:
Zinc Alloy -
Temperature Range:
-20℃~+90℃ -
IP Rating:
IP 40 (Fit with Low Fire Hazard conduit series)
IP 64 (Fit with Water Proof conduit series, PAG & PLTG Series) -
Surface Finish :
Zinc plated, other treatments are available by consult. -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
G Thread
| Nominal Conduit Size | Nominal Conduit Size | G Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 16 | 3/8 | 1/2" | G1/2-AZ60-3/8 | 500 | 20.5 |  |  |
| 20 | 1/2 | 1/2" | G1/2-AZ60-1/2 | 500 | 24 | | |
| 25 | 3/4 | 3/4" | G3/4-AZ60-3/4 | 300 | 24.8 | | |
| 32 | 1 | 1" | G1-AZ60-1 | 160 | 18.2 | | |
| 40 | 1-1/4 | 1-1/4" | G1-1/4-AZ60-1-1/4 | 100 | 19.8 | | |
| 50 | 1-1/2 | 1-1/2" | G1-1/2-AZ60-1-1/2 | 60 | 15.5 | | |
| 63 | 2 | 2" | G2-AZ60-2 | 50 | 20.1 | | |
M Thread
| Nominal Conduit Size | Nominal Conduit Size | M Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 16 | 3/8 | M16x1.5 | M16-AZ60-16 | 500 | 20.5 | | |
| 20 | 1/2 | M20x1.5 | M20-AZ60-20 | 500 | 24 | | |
| 25 | 3/4 | M25x1.5 | M25-AZ60-25 | 300 | 24.8 | | |
| 32 | 1 | M32x1.5 | M32-AZ60-32 | 160 | 18.2 | | |
| 40 | 1-1/4 | M40x1.5 | M40-AZ60-40 | 100 | 19.8 | | |
| 50 | 1-1/2 | M50x1.5 | M50-AZ60-50 | 60 | 15.5 | | |
| 63 | 2 | M63x1.5 | M63-AZ60-63 | 50 | 20.1 | | |
