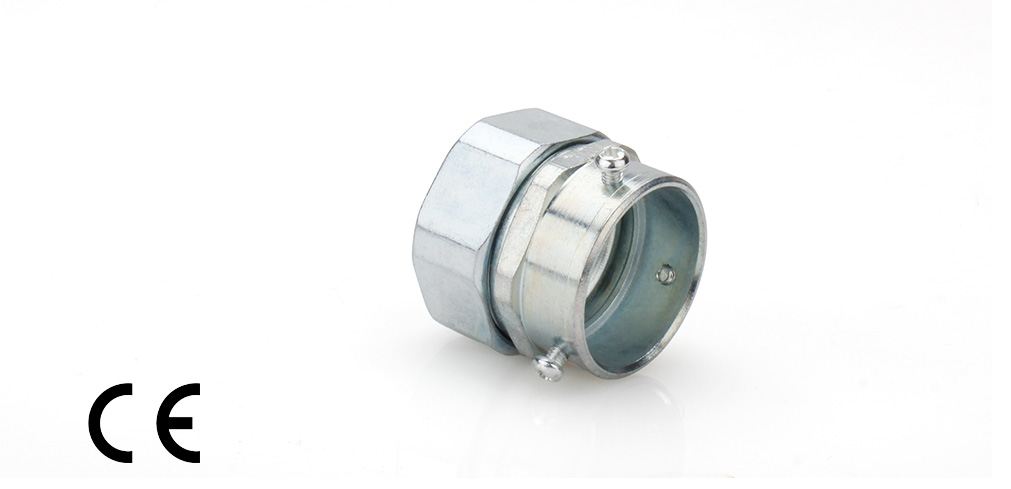

Straight Type, EMT Connector
The Straight Type, EMT Connector, AZ62 series is applied on the relay point close to the end of wiring system to switch the EMT to metal flexible conduits for convenient termination and complete wiring protection. The body is made of zinc alloy with RoHS compliance. The fitting is fitted to unthreaded EMT by set screw and connected with metal flexible conduit by a nut. Widely used in industrial or commercial applications, such as: Machines, Oil Refineries, Chemical Plants, Sewage Treatment Plants, HVAC Systems, Power Supply Systems, Aviation, Automobile, Shipbuilding ... and etc. for wiring protection.
Feature
-
Material:
Zinc Alloy -
Temperature Range:
-20℃~+90℃ -
IP Rating:
IP 40 -
Surface Finish :
Zinc plated, other treatments are available by consult. -
RoHS Compliance :
Yes -
Certificate :
CE
Parameter
| Nominal Conduit Size | Nominal Conduit Size | EMT Conduit Size | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 16 | 3/8 | 1/2" | AZ62-3/8 | 500 | 21.3 |  |  |
| 20 | 1/2 | 1/2" | AZ62-1/2 | 500 | 26.5 | | |
| 25 | 3/4 | 3/4" | AZ62-3/4 | 300 | 24 | | |
| 32 | 1 | 1" | AZ62-1 | 160 | 18.3 | | |
| 40 | 1-1/4 | 1-1/4" | AZ62-1-1/4 | 100 | 18.1 | | |
| 50 | 1-1/2 | 1-1/2" | AZ62-1-1/2 | 60 | 15.1 | | |
| 63 | 2 | 2" | AZ62-2 | 50 | 19.9 | | |
